FREE SHIPPING ON ALL ORDERS—READY TO SHIP!
Couldn't load pickup availability
TOTAL PRICE
$1,449.00
You shouldn’t have to choose between great gear and your budget. We make both work.
We’ve designed our products with DIYers in mind, so installs are simple, instructions are clear, and frustration stays out of the build. If you’ve got basic tools, you’ve got this.
Built to handle the dirt, the rain, the snow, and the road ahead. Wherever you go, our gear is made to keep up.
Tens of thousands of customers worldwide
prove you don’t need to overpay for great gear.
We offer fast and free shipping
so you can get building without the wait.
Overall rating: 5.0 / 5 from 2 reviews.
Review topics: [].
"Each panel actually telescopes, therefore it can accommodate basically any height that you would like to put the bed. I would imagine if you have another set of the side supports you can make a table or a sofa out of this the combinations is pretty endless"
"Incredible procut !!"
What are the exact dimensions of the 4-panel bed? Will it fit my Transit?
The 4-panel bed system overall dimensions are 64" x 75.4". Each individual panel is 64" x 15.6". It is designed for the high roof Sprinter and fits both 144" and 170" wheelbases. For custom mattress orders: Steve recommends ordering from RoamRest using the bed dimensions. Corner gaps between panels and exact rivet hole specs are below on this page and in the install PDF.

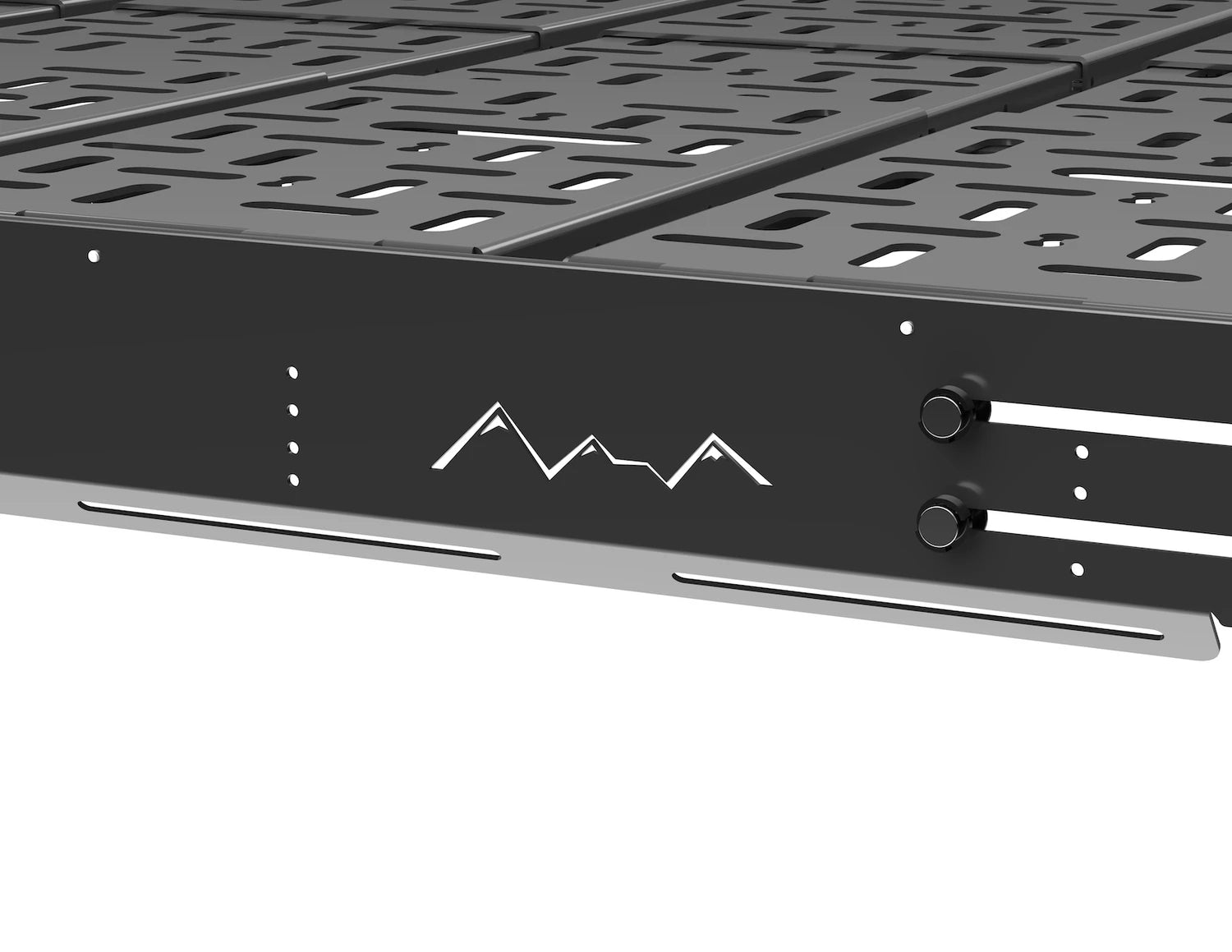

How do the L-Track brackets work? Do I need them? Will they work in my passenger van?
The L-Track Adjustable Bed Brackets mount to the existing L-Track already in your van's walls, letting you set the bed at any height. They are sold separately from the bed panels. If your van has no L-Track, you can mount the bed frame directly to the van body — instructions for both methods are in the PDF on the product page. The brackets work in all Sprinter configurations including passenger vans with windows. For Transit vans we have a separate bed system, click here to access.
How long does shipping take? Can I pick up locally?
In-stock orders ship same day or next business day via UPS/FedEx and arrive in 3–7 business days. For local pickup: 14831 Franklin Ave, Tustin, CA 92780. Hours: Mon–Thu 9AM–4PM, Fri 9AM–3PM. Place your order online first and note 'will call,' then call or text 949-298-0455 before heading over.

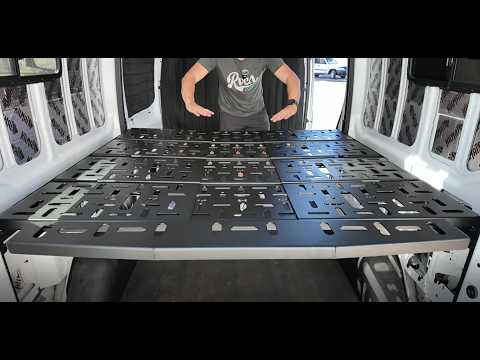

What tools do I need? What size rivets? Is there an install video?
Required tools: 5mm and 6mm hex wrenches, 10mm and 13mm open-end or socket wrenches, and a rivet gun for L-Track installation. Current rivet spec: 1/4" rivnuts (recently updated from 1/8" — the install video may still show the old size, but 1/4" is correct and stronger). Full install PDF and video are right below on this product page. The bed does not require a rack to install.
What's the difference between the 3-panel and 4-panel? Which one should I order?
The 4-panel is the current product — the 3-panel has been phased out. Both use the same wall rails. The 4-panel is lighter and allows you to remove individual panels more easily.
How much weight can the 4-panel bed system hold?
The 4-panel bed system supports 500 lbs as a distributed load. Customers have used it for heavy product storage beyond that without issues. Avoid concentrated point loads on a single panel. Here's a load strength video: whitetopadventures.com/cdn/shop/videos/c/vp/148e65d5001f4
What mattress do you recommend for the 4-panel bed system?
We recommend RoamRest for a mattress that fits the bed dimensions. Contact us at info@whitetopadventures.com and we'll send you the exact dimensions to use when ordering. A standard cut-to-size foam mattress at 64" x 75" works well. Note: the thin foam strips on top of the platform can pull off when sliding a mattress — position your mattress carefully when removing it.
