SPRINTER VAN PLATFORM BED SYSTEM 2.0

IN STOCK!

Regular price: $1,675.00
Sale price: $1,675.00
Regular price

Play video

SPRINTER VAN PLATFORM BED SYSTEM 2.0

IN STOCK!

Regular price: $1,675.00
Sale price: $1,675.00
Regular price

Fit type Mount to L track Mount to Frame

FREE SHIPPING ON ALL ORDERS—READY TO SHIP!

Introducing the lightest, most versatile platform bed system we've ever built.

Meet the next evolution of our best-selling honeycomb bed system 1.0, now redesigned from the ground up for maximum flexibility, strength, and ease of use inside your Sprinter.

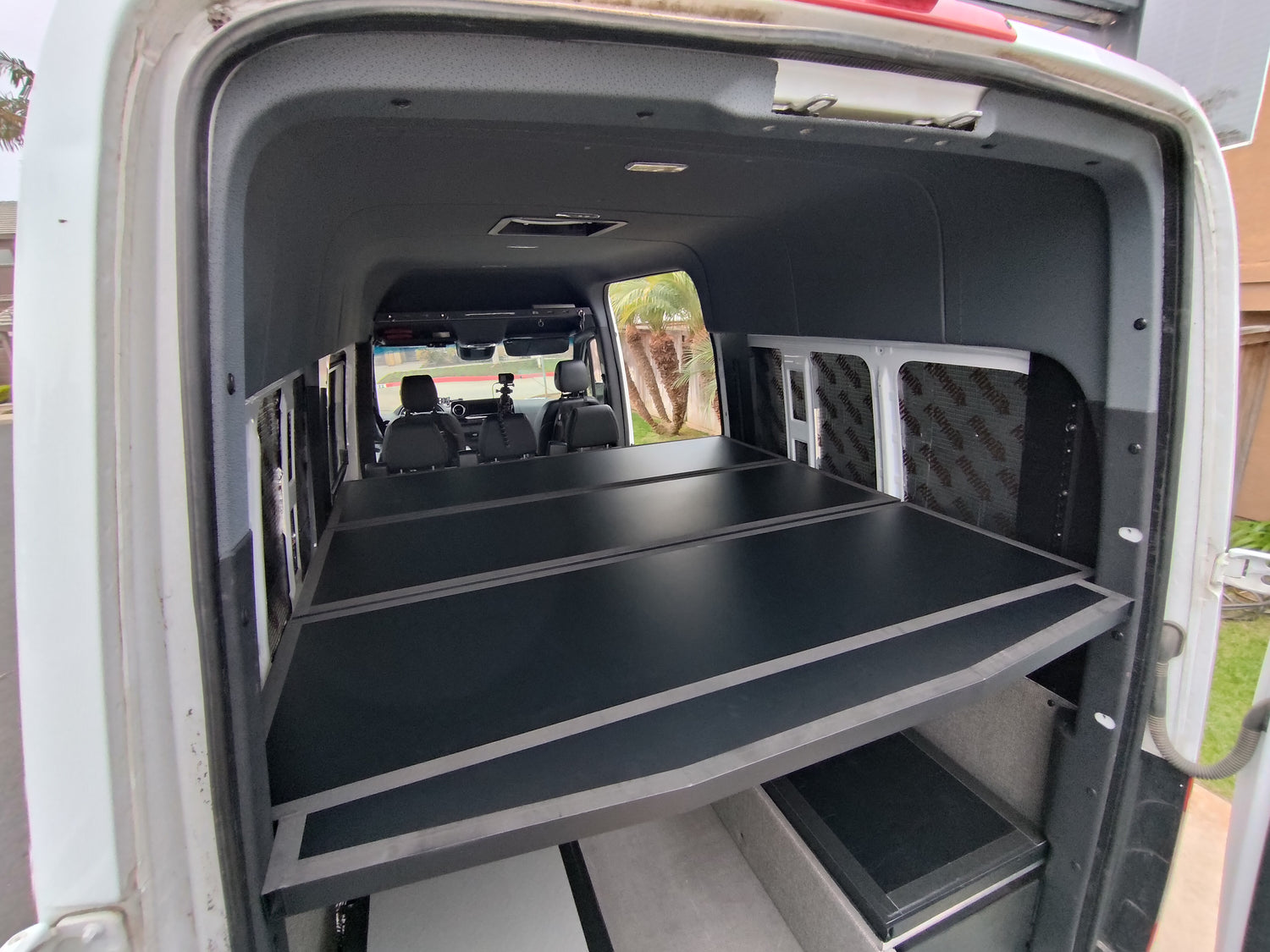

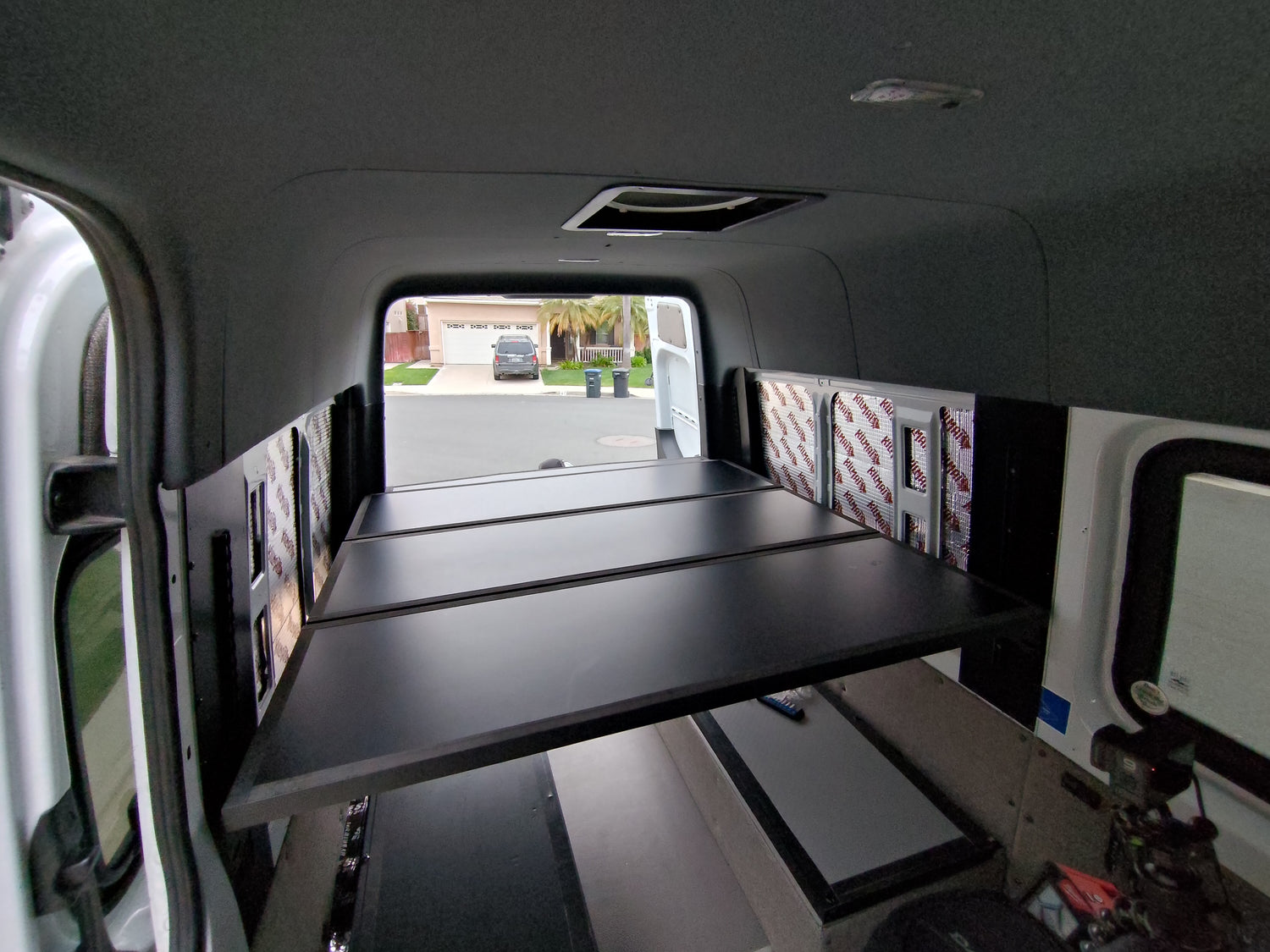

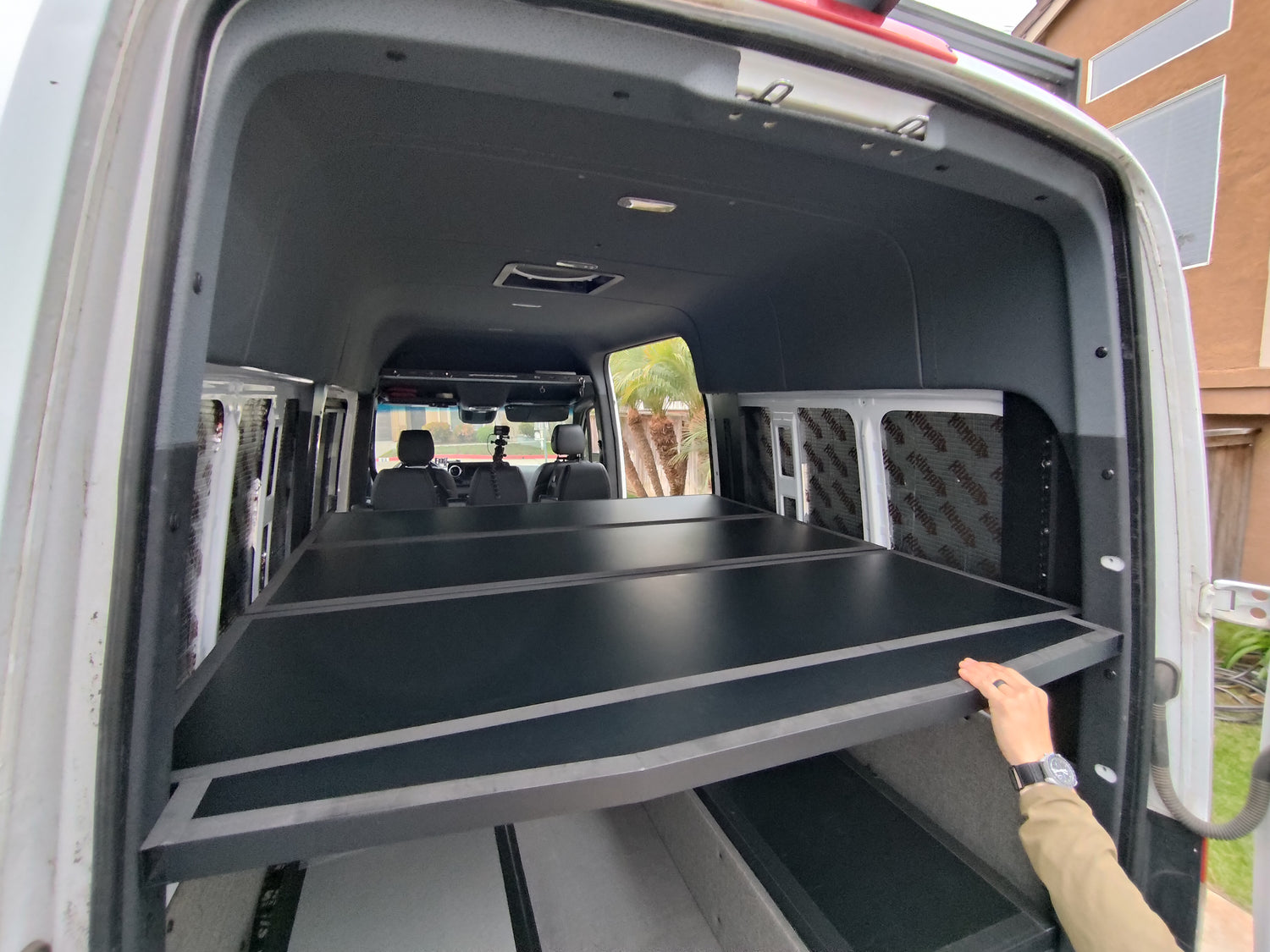

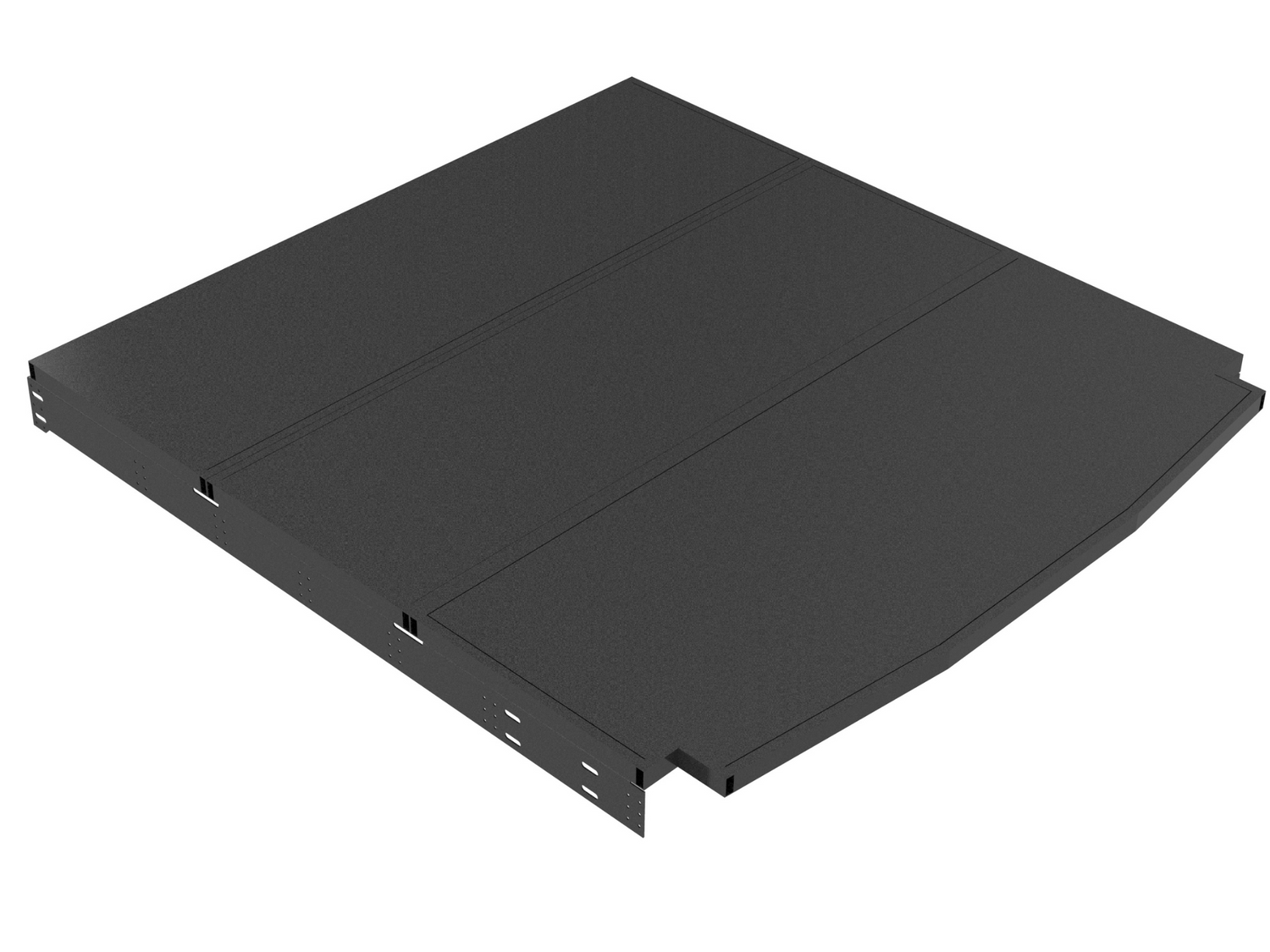

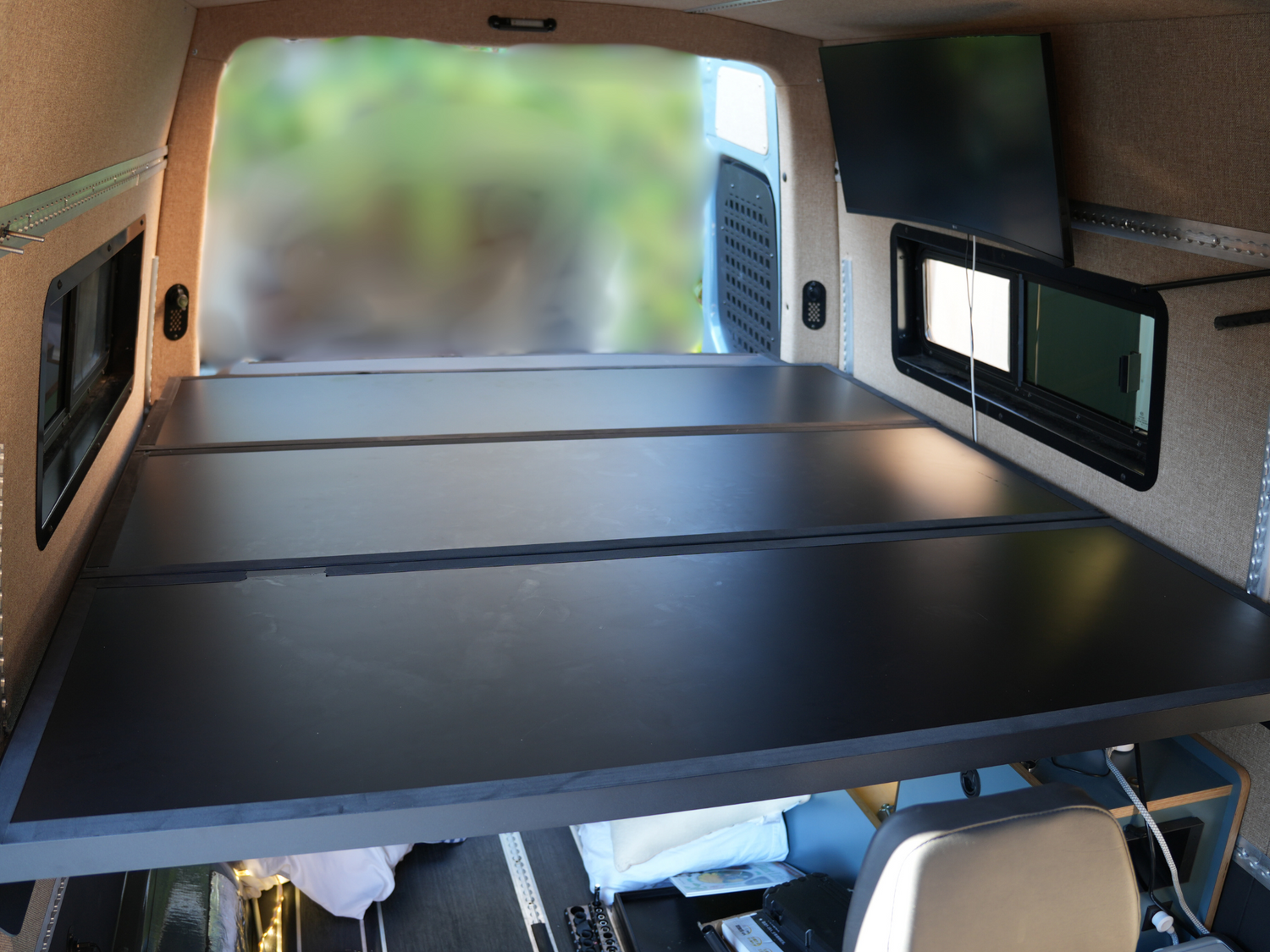

Our new 2.0 Sprinter Van Platform Bed System's surface is split into 4 all-aluminum pieces, so each one weighs just 16–24 lbs. You can lift, remove, or reconfigure it solo. The whole system comes in at 152.6 lbs total — up to 60% lighter than a traditional steel bed frame — without losing rigidity: zero flex, zero rattle, even on rough roads.

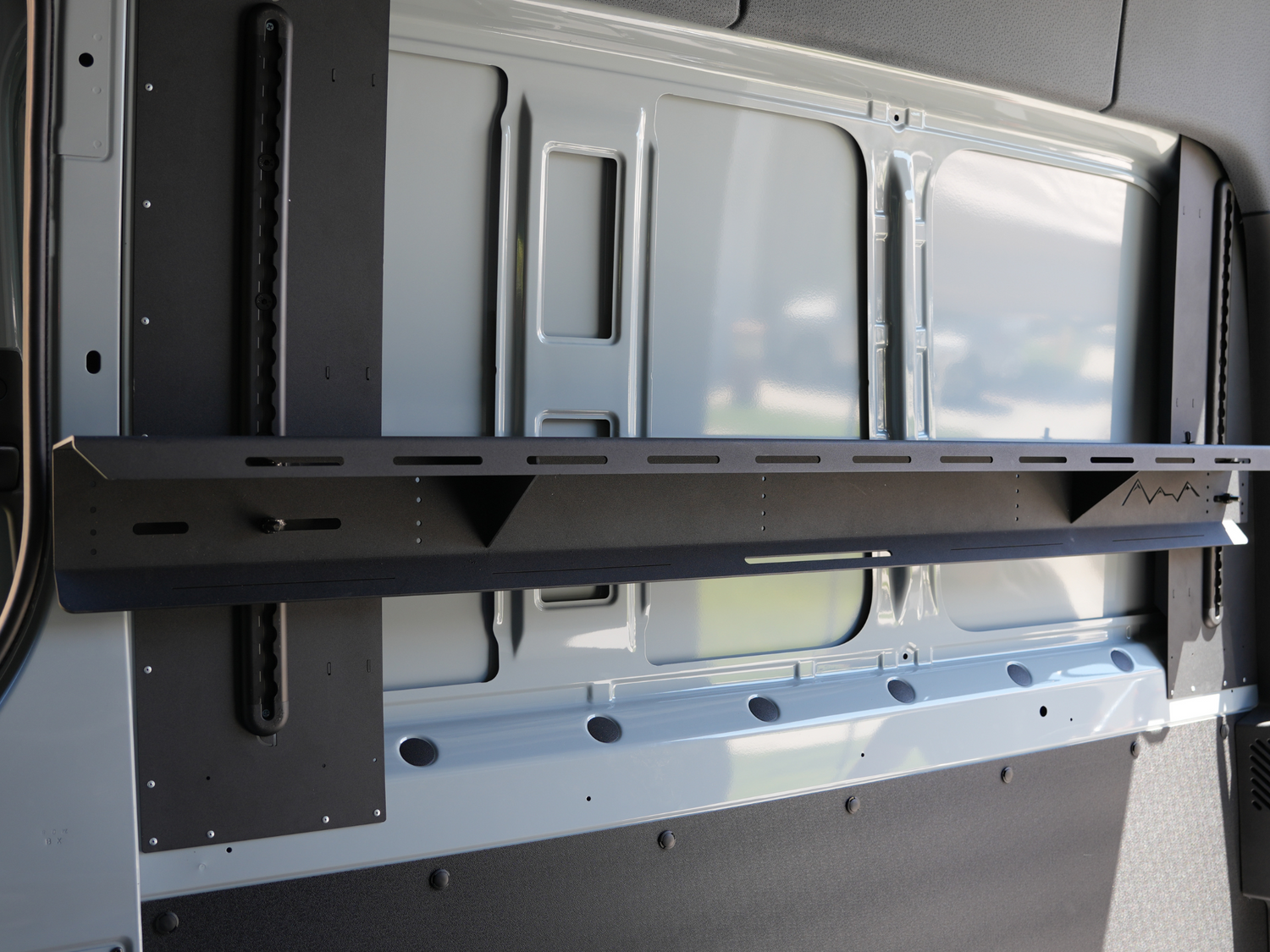

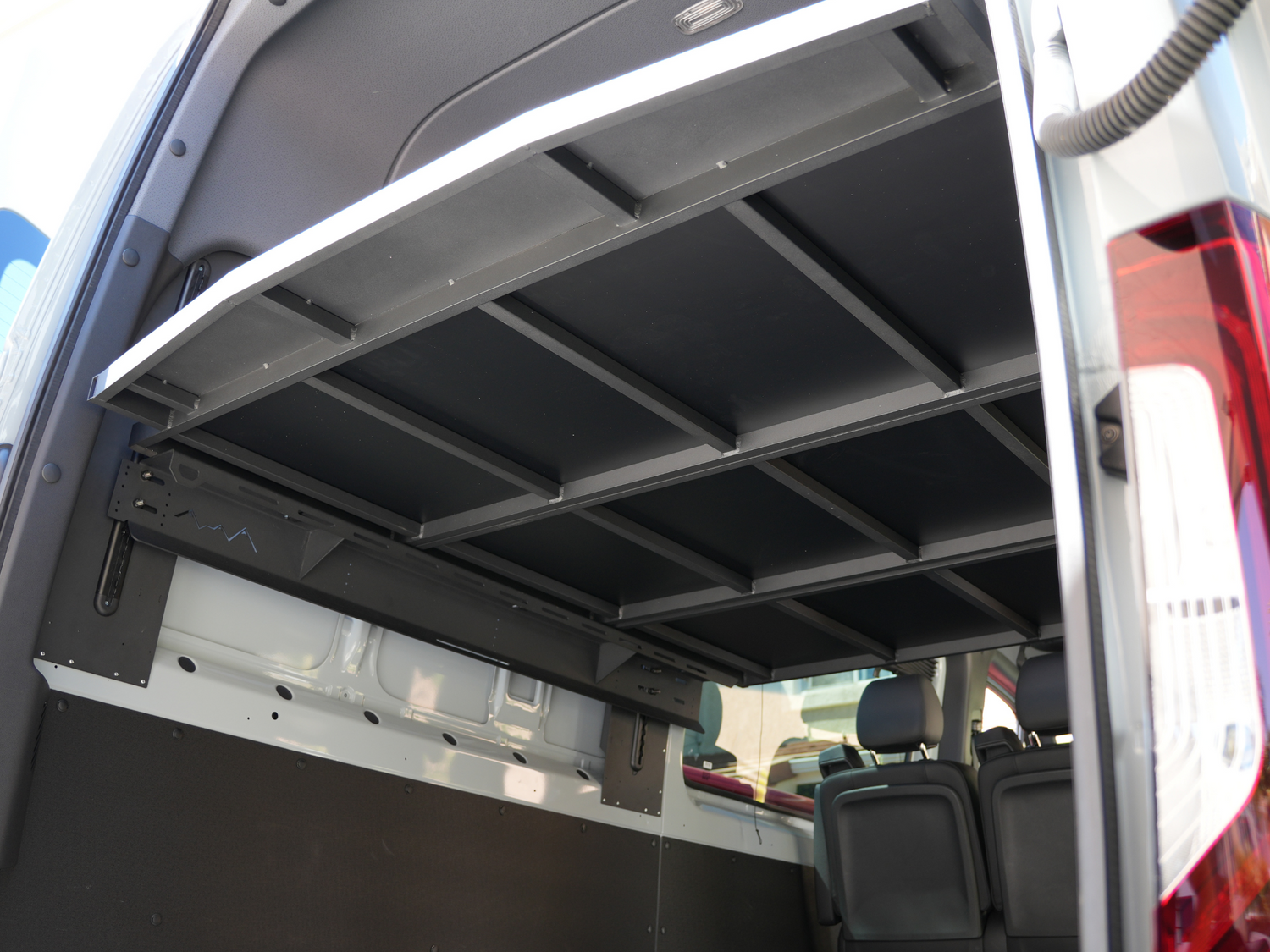

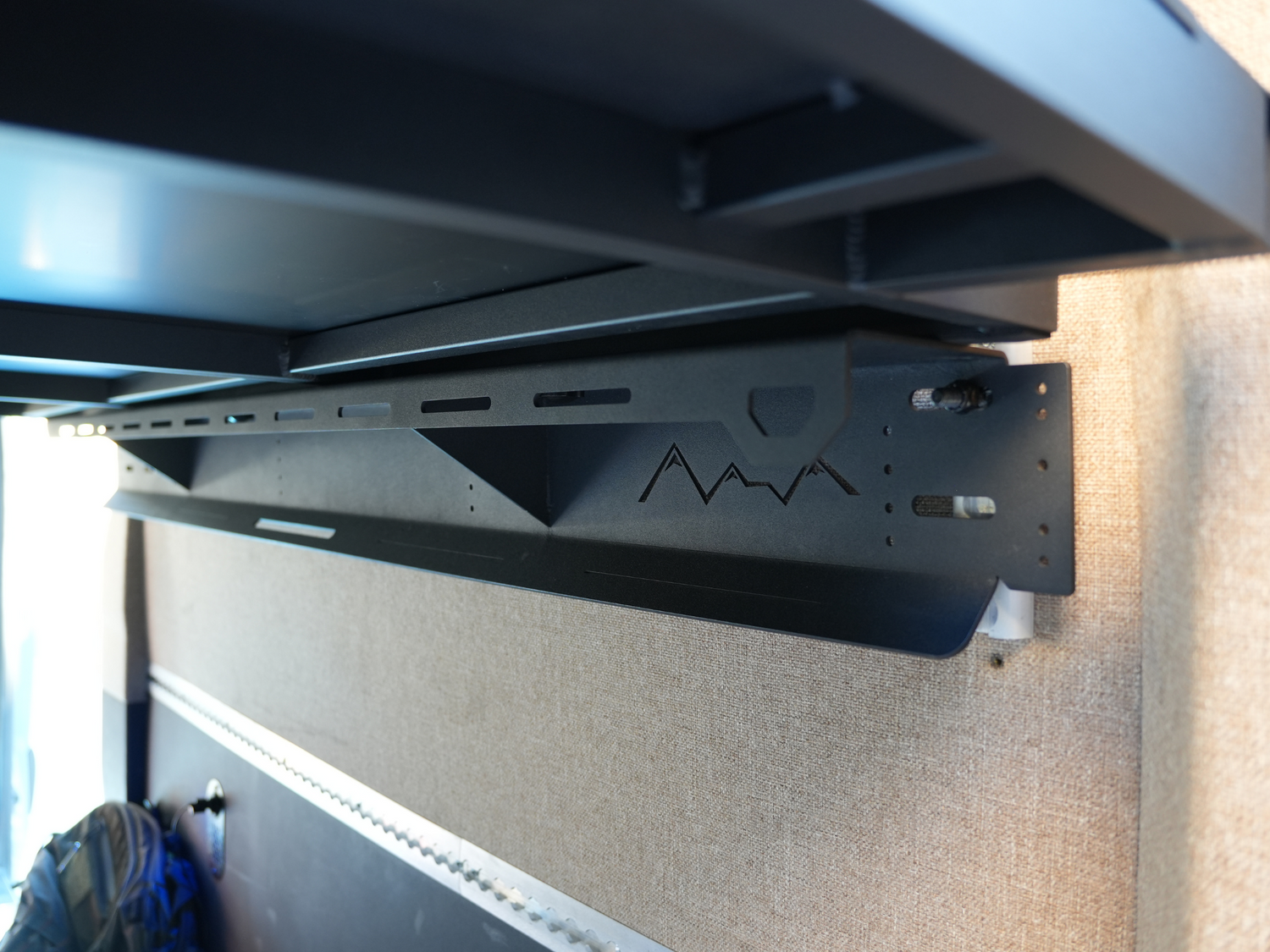

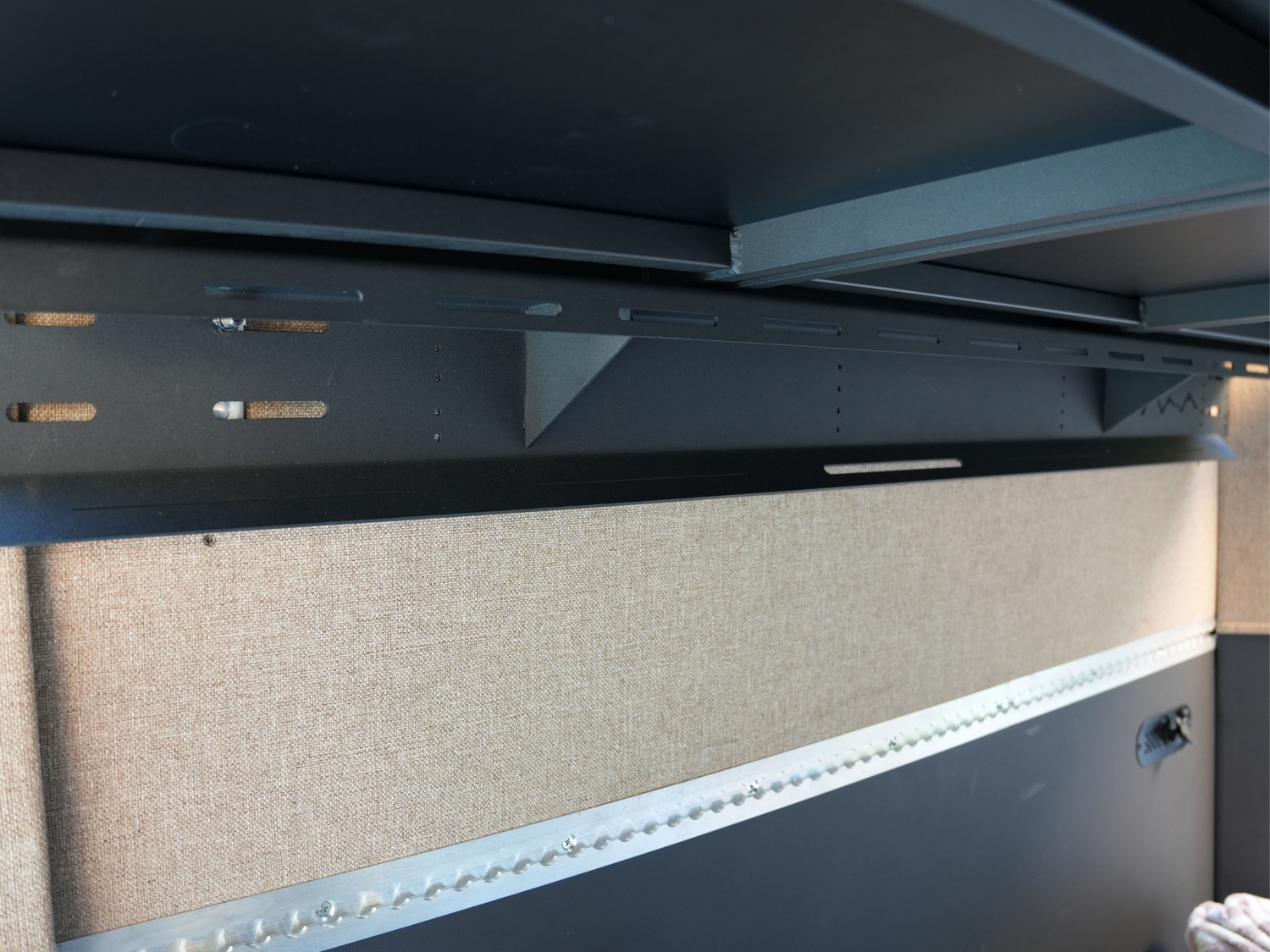

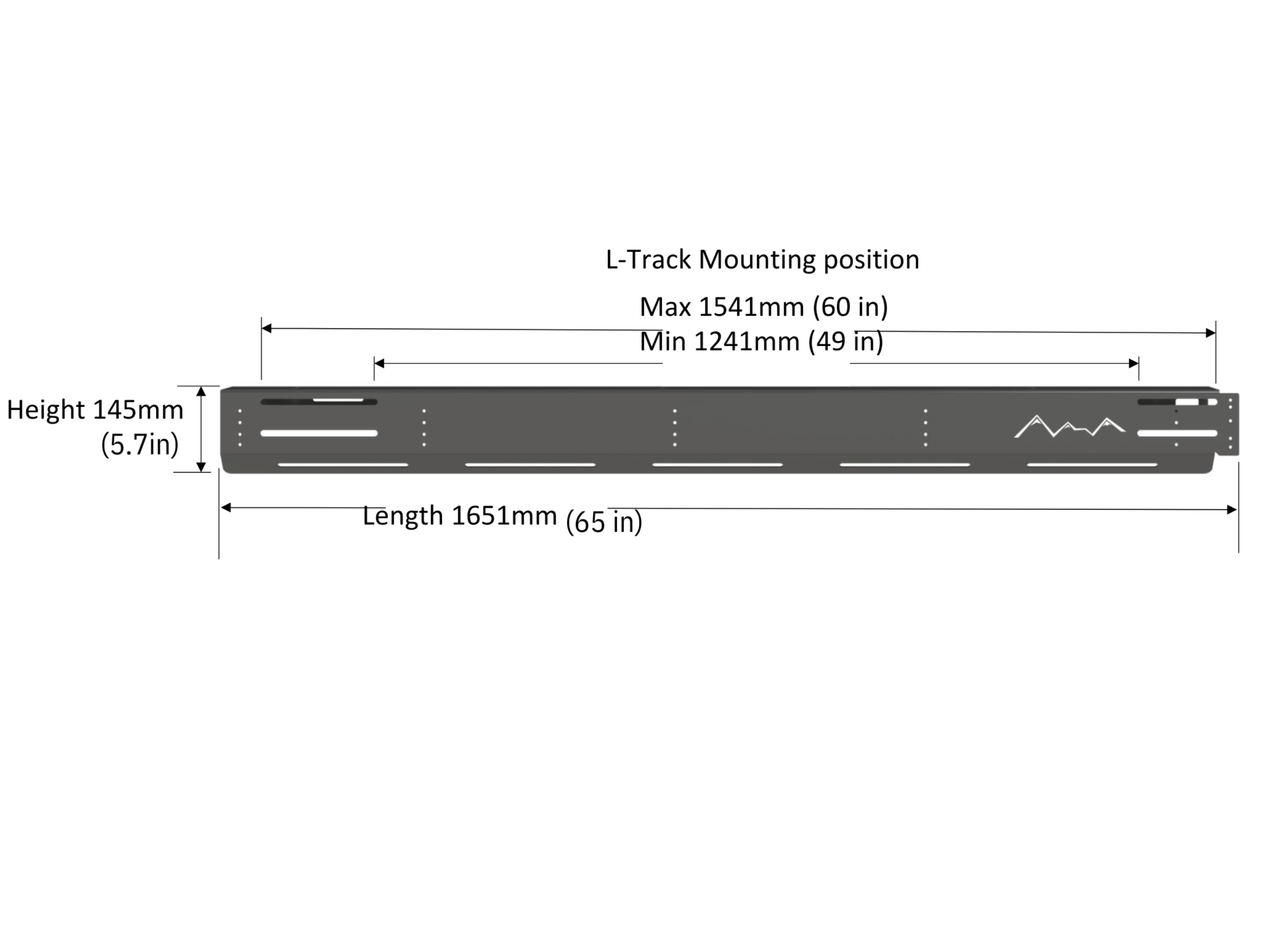

This platform bed system can be mounted with adjustable L-Track brackets (sold separately) to raise or lower the bed, opening up extra garage space underneath. Each panel holds a 200 lb static load.

Whether you're hauling bikes, dirt bikes, gear, or just want a bed that's always ready, this bed is built to move with your lifestyle.

Details

· Product Weight: 152.6 lbs

· Bed Panel Dimensions: 74.5" L x 64" W

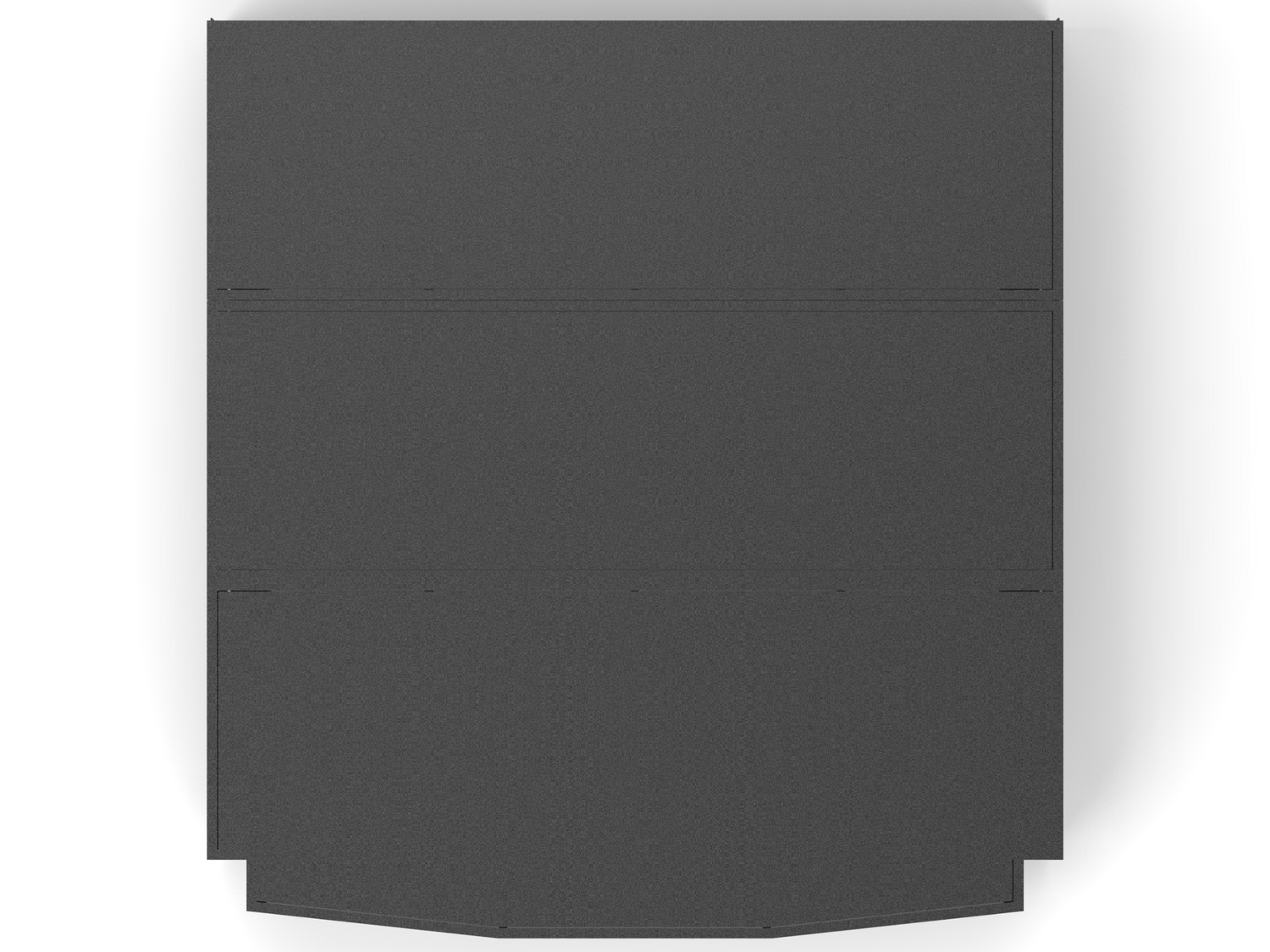

· 4 removable aluminum panels included

· Mounting height range: 37" to 48" from the van floor

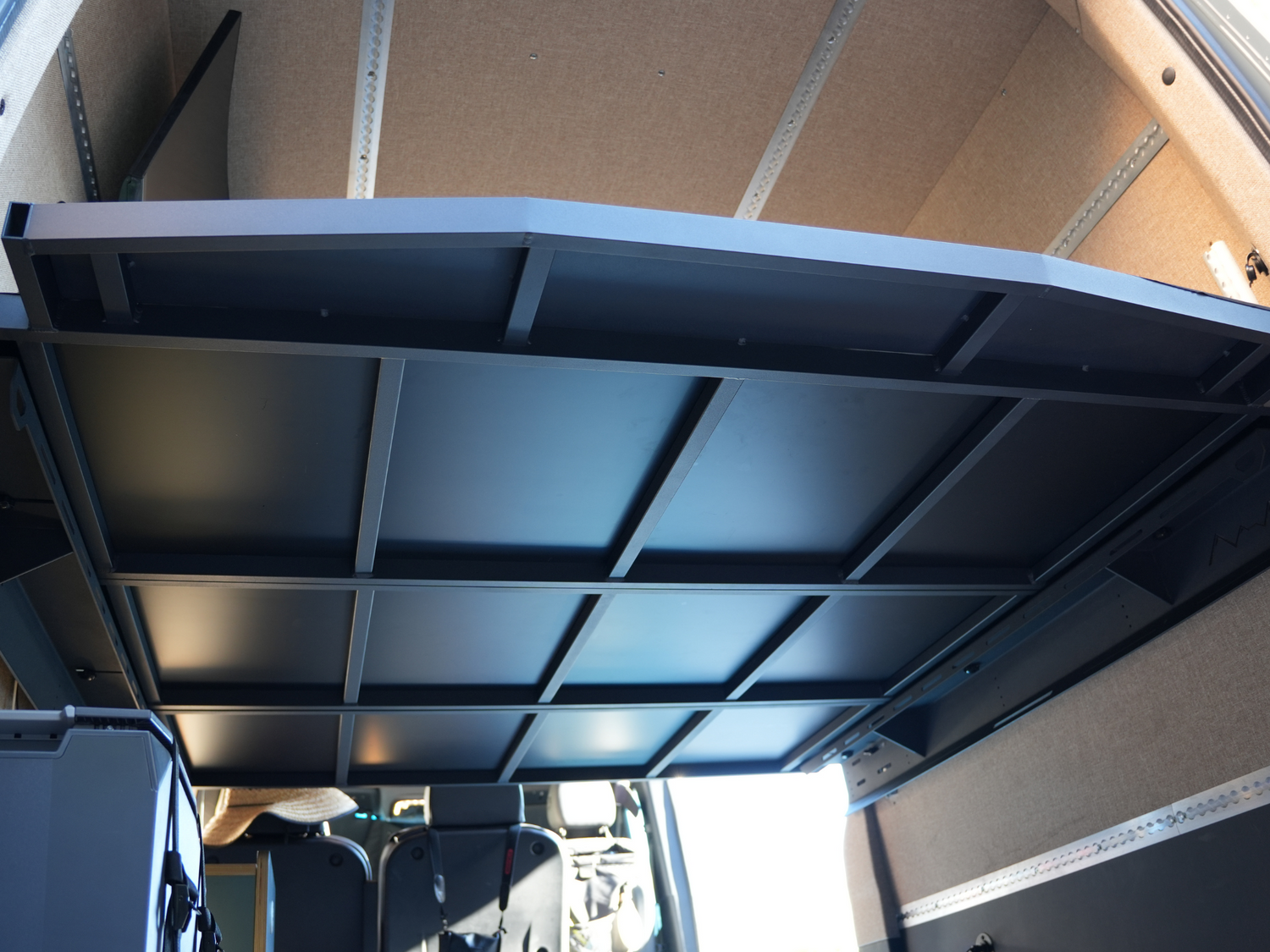

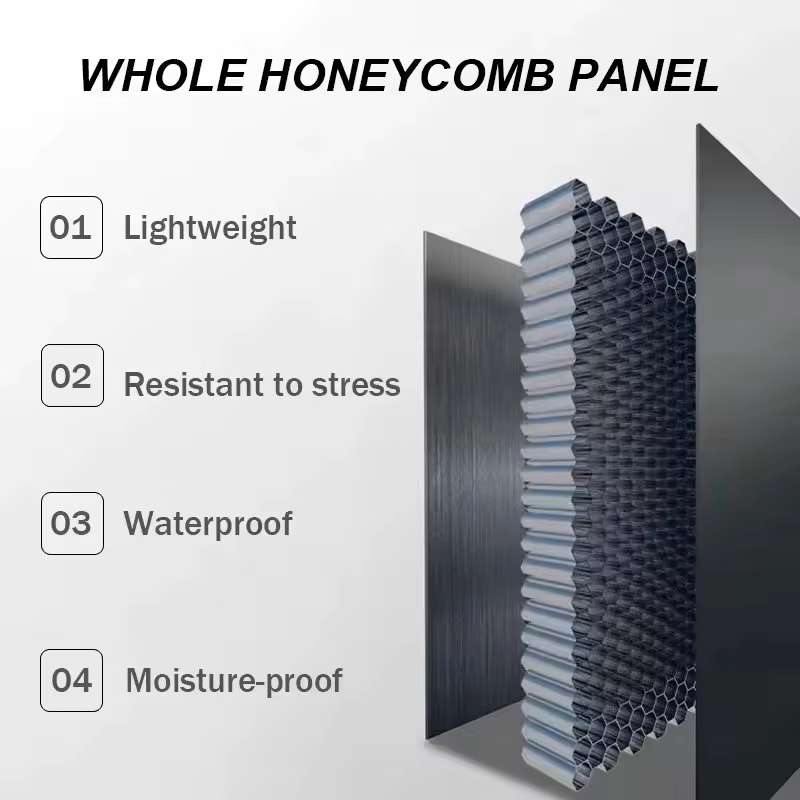

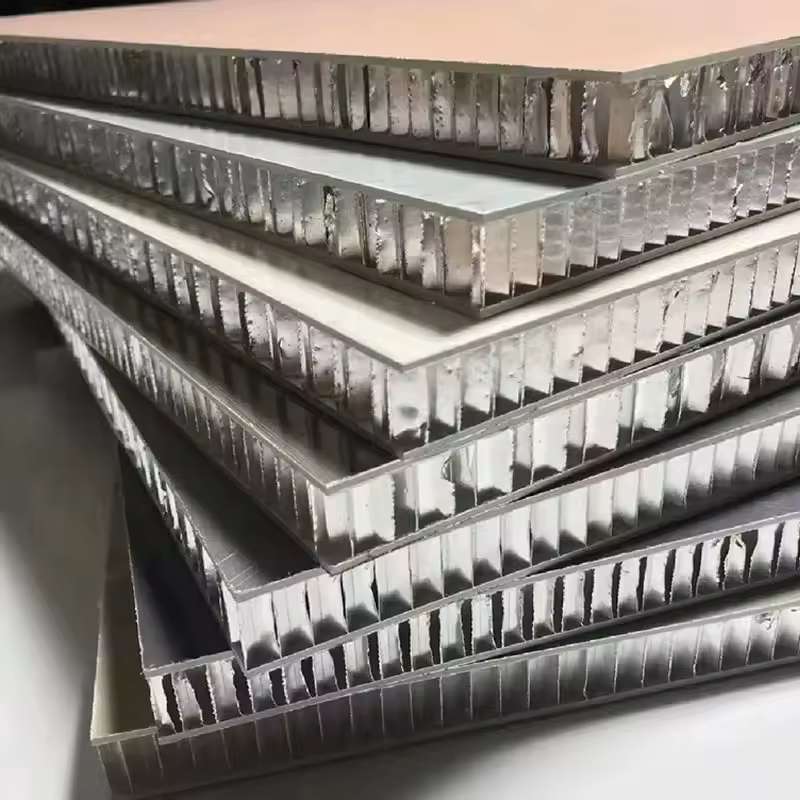

· Corrosion-resistant aluminum honeycomb construction

· 60% lighter than standard bed systems

· No flex, high rigidity

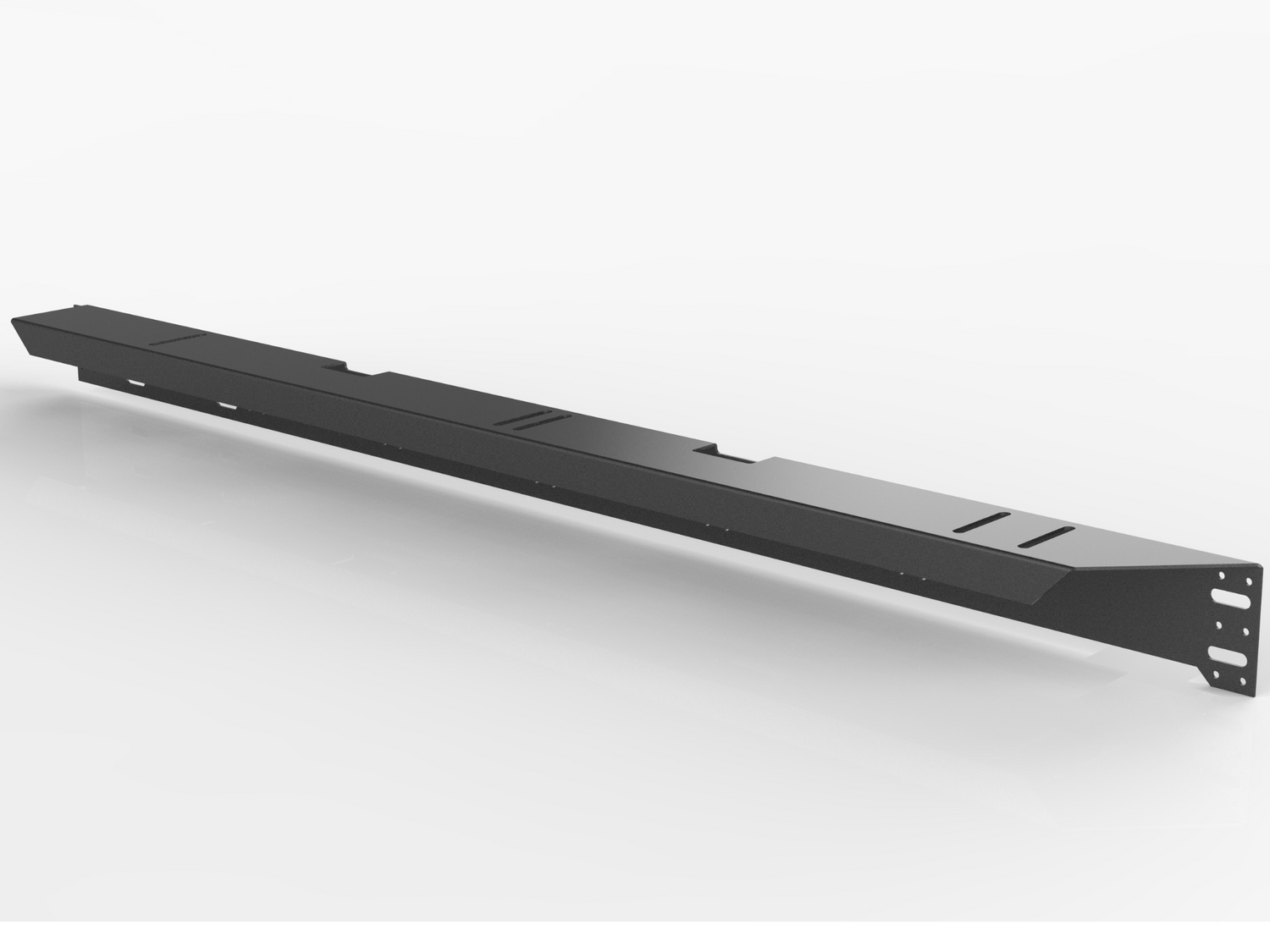

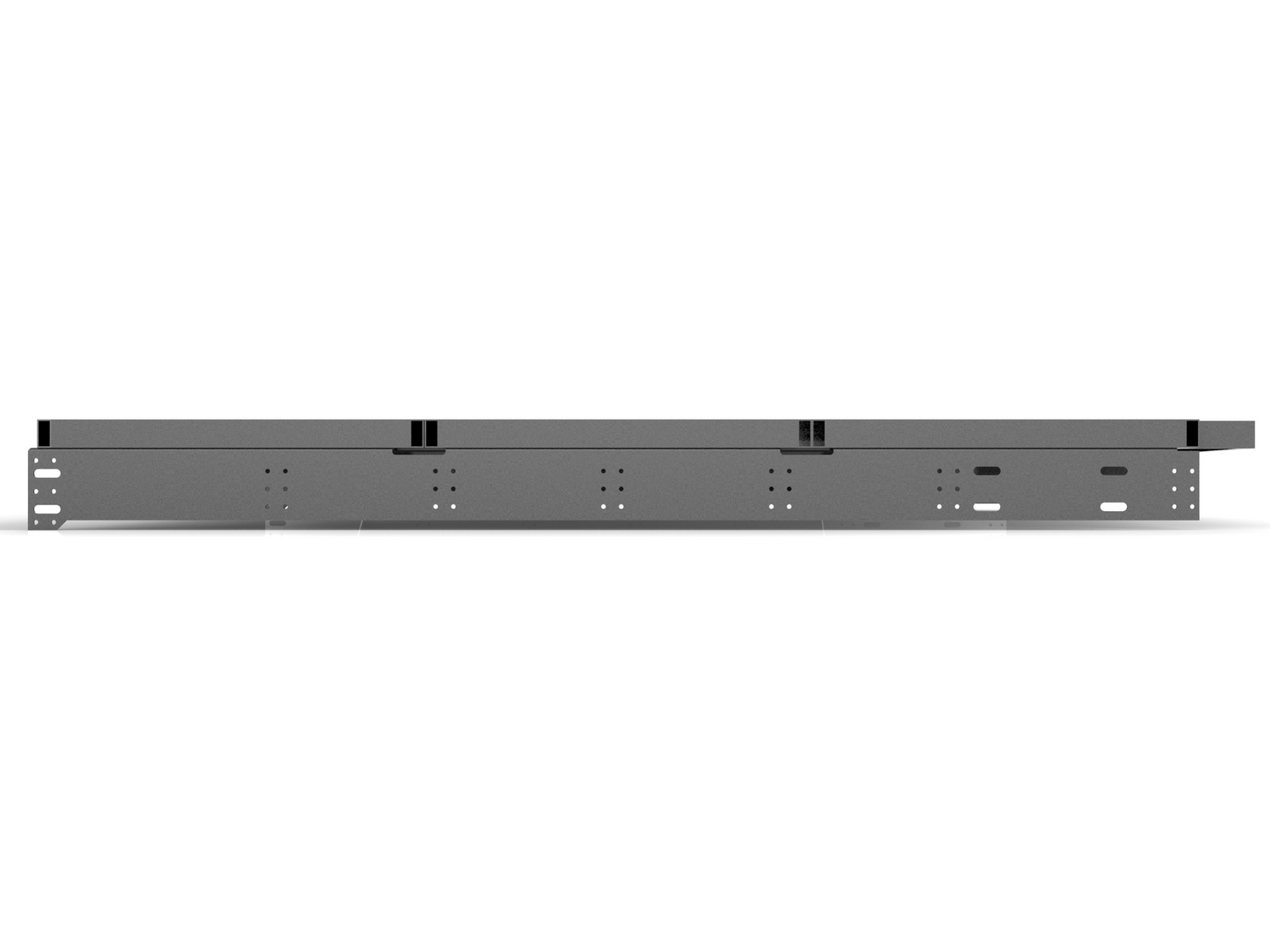

· Mounts to factory frame or Adventure Wagon rails

· Optional adjustable L-track mounting system (sold separately)

· Static Load:200 lbs/panel
*Unless otherwise specified by the manufacturer

Compatibility

Mercedes-Benz Sprinter Vans (2007+)

Compatible with Adventure Wagon side rails.

Mountable directly to your van’s frame with spacer or with optional L-track mounts.
(L-track mounts sold separately).

Installation Guide

Need help with installation? Click here to view the PDF guide and watch the installation video.

Frequently Asked Questions

FREQUENTLY
BOUGHT TOGETHER

SPRINTER VAN L TRACK ADJUSTABLE BED BRACKETS
Vendor:
White Top Adventures
SPRINTER VAN L TRACK ADJUSTABLE BED BRACKETS

Regular price

$395.00

Sale price

$395.00
Regular price
+
DIY PULL OUT TRAY 60"
Vendor:
White Top Adventures
DIY PULL OUT TRAY 60"

Regular price

$575.00

Sale price

$575.00
Regular price
+
SPRINTER VAN AIR FLOW INFLATABLE BED
Vendor:
White Top Adventures
SPRINTER VAN AIR FLOW INFLATABLE BED

Regular price

$299.00

Sale price

$299.00
Regular price

TOTAL PRICE

$1,269.00

INSTALLATION GUIDES

Open Modal

SEE HOW EASE IT IS -
DOWNLOAD THE GUIDE

Premium Quality, Priced Right

You shouldn’t have to choose between great gear and your budget. We make both work.

DIY Friendly

We’ve designed our products with DIYers in mind, so installs are simple, instructions are clear, and frustration stays out of the build. If you’ve got basic tools, you’ve got this.

Made For Outdoor Adventures

Built to handle the dirt, the rain, the snow, and the road ahead. Wherever you go, our gear is made to keep up.

Tens of thousands of customers worldwide
prove you don’t need to overpay for great gear.

We offer fast and free shipping
so you can get building without the wait.

Overall rating: 4.818182 / 5 from 22 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Side steps

"Side steps look great, easy install!"

— Jaimee K. (5/5)

Price, quality, delivery times and support all 💯

"Just installed my Bed System in my 2024 Sprinter Crew and love it! Solid construction and easy assembly. The support from Whitetop Adventures is also top notch. Thank you guys! If I had to make one critical remark it would be that the components I received were slightly different from the instructions but nothing that would prevent someone from installing. I just wanted to make sure I wasn't missing anything."

— Jason T. (5/5)

Buy one - It is a fantastic product

"Once you have the L-Track system installed on the walls, adding the bunk is a piece of cake - it takes less than an hour for two people to install the rails and panels. Super happy with our purchase and I love how easy it is to remove the platform panels when I need my van to haul cargo. This is the perfect bunk solution for the sprinter owner who uses their van for more than recreation. Bonus: Whitetop Adventures has amazing customer service - real people answer calls!"

— karrie h. (5/5)

My new favorite bed

"Installation was a breeze with the right tools. Was able to have it installed quickly and the bed supports my big ol frame and weight."

— Tom's A. (5/5)

4 Panel Bed with L-Track Brackets

"We transformed our 2012 Sprinter Passenger Van into a “weekender” van by purchasing the four-panel bed. This significant upgrade was driven by its affordability and compatibility, especially considering we have aftermarket in our rear windows. Steve at WAV was incredibly helpful in ensuring the bed would fit perfectly. Installation was strait forward, taking about 3 hours. Having access to a rivet gun was huge. We carefully mounted the L-Track brackets, ensuring the bed rails and panels were placed and aligned correctly. Overall, this bed platform is great, and it complements the Hest Dually Custom 75 perfectly for added comfort."

— Daniel L. (5/5)

Excellent Product

"The kits look really great! I am having the L-Track installed and onto our first Grand Canyon safari."

— Lauben K. (5/5)

Sturdy bed

"These fit right into the L track brackets. The individual pieces fit right into place , making a sturdy bed that doesn't move when traveling. They can be removed when not needed and take about as much room as a short bookshelf when stored."

— Scott C. (5/5)

Works in the passenger van

"I have windows on the back and this bed system actually works in the passenger van which is what I have it works great and the products very strong they're not many system out there on the market don't work with a passenger van"

— Ken (5/5)

Happy racer

"I love my adjustable height loft bed system. Installed it on a the wendsday before thanksgiving and used it the very next night on the 16 hour drive to barber motorsports park in Alabama. I installed to to sit just above my race bike so I could pull over on long drives and take a power nap then use it on overnight stays at the race track. So much more convenient then having to move things around or unload just to sleep. Highly recommend. Easy to install and it looks as amazing as it works."

— Anthony S. (5/5)

Not easy use

"I thought it was going to be easy to actually move up and down that’s why I spent almost 2000$ You have to physically unbolt it everytime with 8 bolts to move it up and down I thought there would be some kind of quick release , then looking into it they charge a 15 percent restocking fee then it takes 200-300 to return it so I’m going to Be out 500$ if I return it They make it seem like it’s effortless to move up and down and it’s not."

— Caitlin M. (1/5)

Q&A

Frequently Asked Questions

What are the exact dimensions of the 4-panel bed? Will it fit my Sprinter?

The 4-panel bed system overall dimensions are 64" x 75.4". Each individual panel is 64" x 15.6". It is designed for the high roof Sprinter and fits both 144" and 170" wheelbases. For custom mattress orders: Steve recommends ordering from RoamRest using the bed dimensions. Corner gaps between panels and exact rivet hole specs are below on this page and in the install PDF.

How do the L-Track brackets work? Do I need them? Will they work in my passenger van?

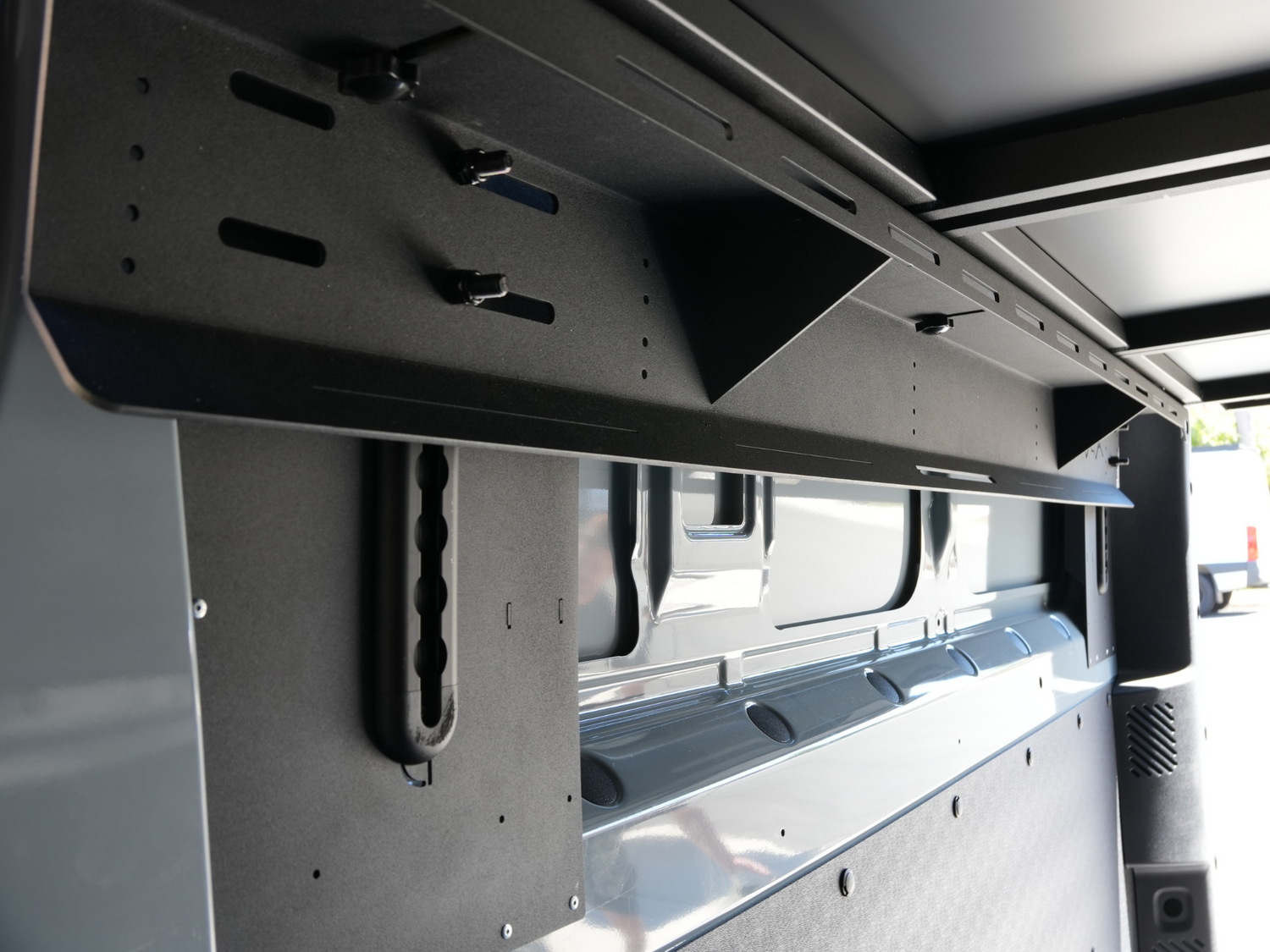

The L-Track Adjustable Bed Brackets mount to the existing L-Track already in your van's walls, letting you set the bed at any height. They are sold separately from the bed panels. If your van has no L-Track, you can mount the bed frame directly to the van body — instructions for both methods are in the PDF on the product page. The brackets work in all Sprinter configurations including passenger vans with windows. For Transit vans we have a separate bed system, click here to access.

How long does shipping take? Can I pick up locally?

In-stock orders ship same day or next business day via UPS/FedEx and arrive in 3–7 business days. For local pickup: 14831 Franklin Ave, Tustin, CA 92780. Hours: Mon–Thu 9AM–4PM, Fri 9AM–3PM. Place your order online first and note 'will call,' then call or text 949-298-0455 before heading over.

What tools do I need? What size rivets? Is there an install video?

Required tools: 5mm and 6mm hex wrenches, 10mm and 13mm open-end or socket wrenches, and a rivet gun for L-Track installation. Current rivet spec: 1/4" rivnuts (recently updated from 1/8" — the install video may still show the old size, but 1/4" is correct and stronger). Full install PDF and video are right below on this product page. The bed does not require a rack to install.

What's the difference between the 3-panel and 4-panel? Which one should I order?

The 4-panel is the current product — the 3-panel has been phased out. Both use the same wall rails. The 4-panel is lighter and allows you to remove individual panels more easily.

How much weight can the 4-panel bed system hold?

The 4-panel bed system supports 500 lbs as a distributed load. Customers have used it for heavy product storage beyond that without issues. Avoid concentrated point loads on a single panel. Here's a load strength video: whitetopadventures.com/cdn/shop/videos/c/vp/148e65d5001f4

What mattress do you recommend for the 4-panel bed system?

We recommend RoamRest for a mattress that fits the bed dimensions. Contact us at info@whitetopadventures.com and we'll send you the exact dimensions to use when ordering. A standard cut-to-size foam mattress at 64" x 75" works well. Note: the thin foam strips on top of the platform can pull off when sliding a mattress — position your mattress carefully when removing it.
