TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK

Regular price
$999.00
Sale price
$999.00
Regular price

FREE SHIPPING ON ALL ORDERS—READY TO SHIP!

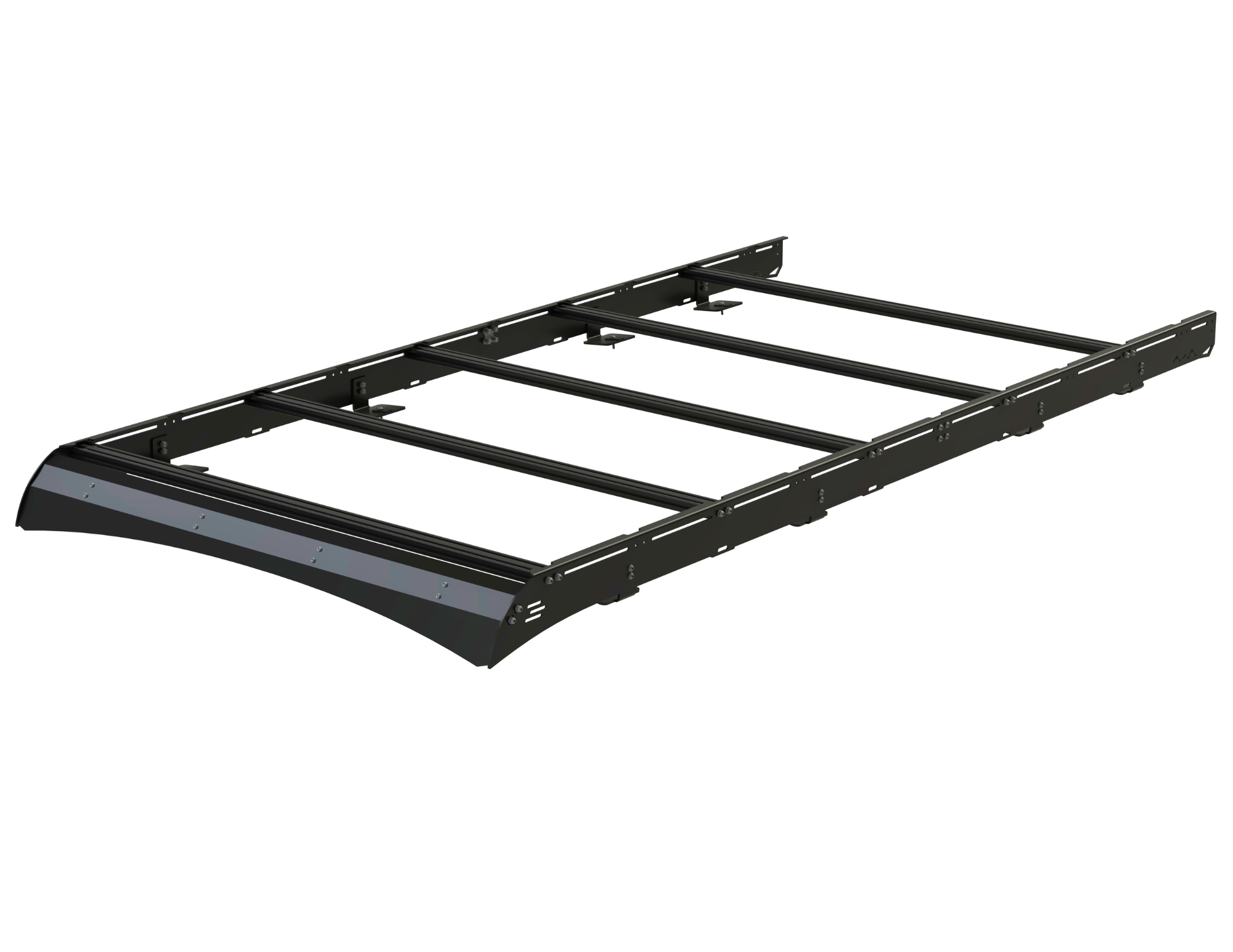

The Strata Roof Rack System is White Top Adventures’ newest innovation—bigger, stronger, and fully customizable. Built for serious travelers, vanlifers, and overlanders, this rugged roof rack provides a versatile platform to mount gear, optimize solar exposure, or simply gain a better view.

With the strongest rail mounts on the Transit and six adjustable crossbars, this rack combines functionality with sleek design — arguably the best looking rack on the market today.


Product Weight: 71.0 lbs

Details

· Product Weight: 71.0 lbs

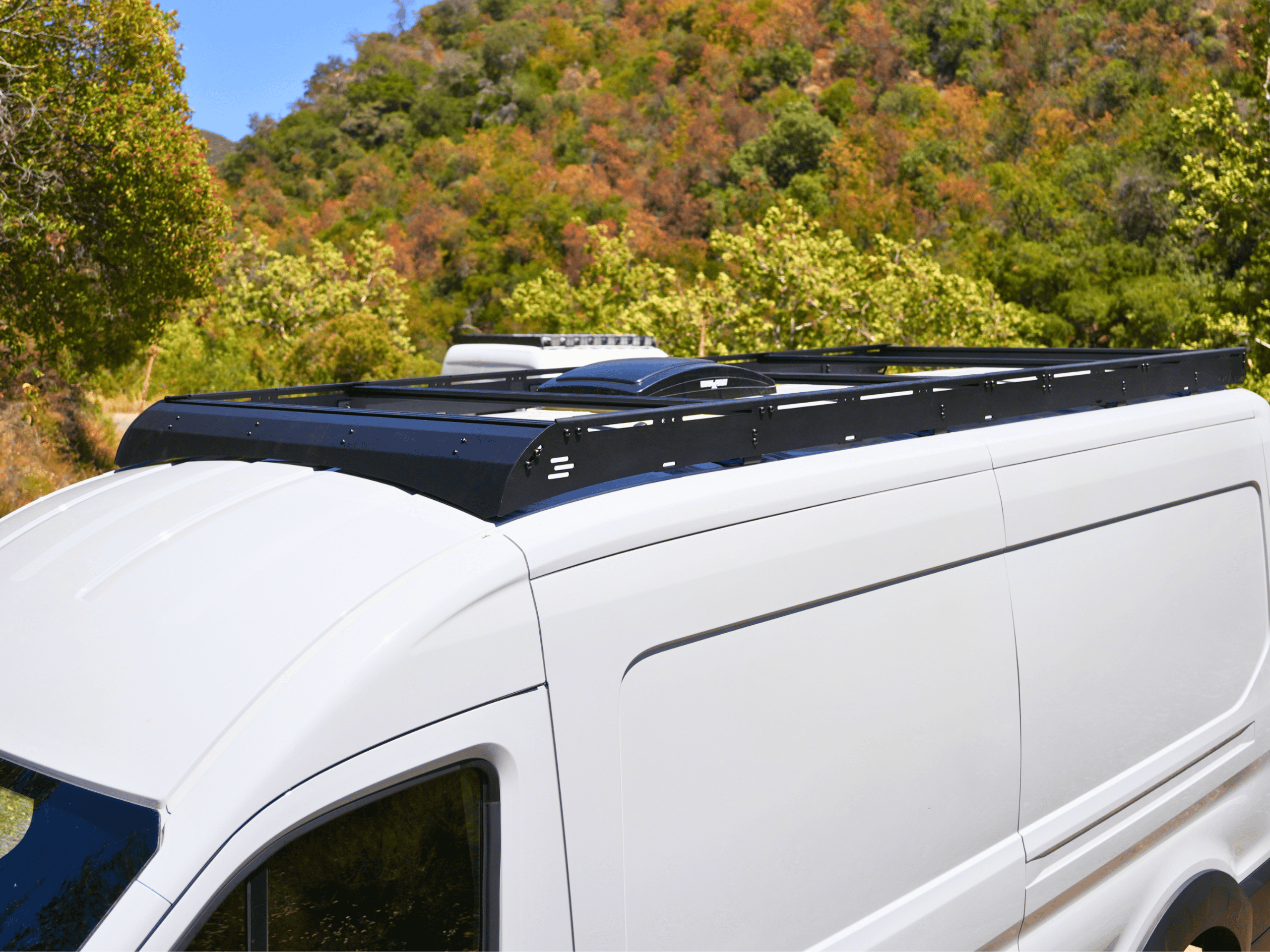

· Easy Gear Mounting: Designed with adjustable crossbars to fit all your rooftop essentials—AC units, MaxxFans, solar panels, rooftop tents, and more. Just slide, lock, and go.

· Strata Deck Compatible: Upgrade your rack into a walkable deck for work or relaxation.

· Walkable Solar Ready: Supports walkable solar panels without sacrificing rooftop space.

· Fiamma F45 Awning Compatibility: Rugged adapter kit optional for mounting the Fiamma awning.

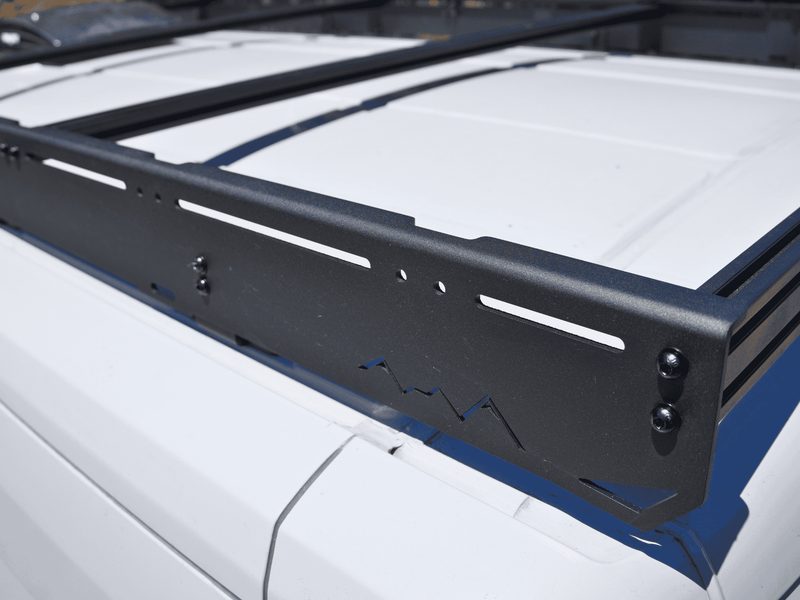

· Industrial-First Rigidity Band: Adds structural strength and doubles as a grab bar for safe climbing.

· Storage-Friendly Layout: Add rooftop storage boxes or bins effortlessly. With plenty of tie-down points and strategic mounting zones, your gear stays secure no matter where you go.

· Shipped Free. Install-Ready: Every rack comes install-ready and ships straight to your door—no hidden fees, no hassle. Just bolt it up and hit the road.

Compatibility

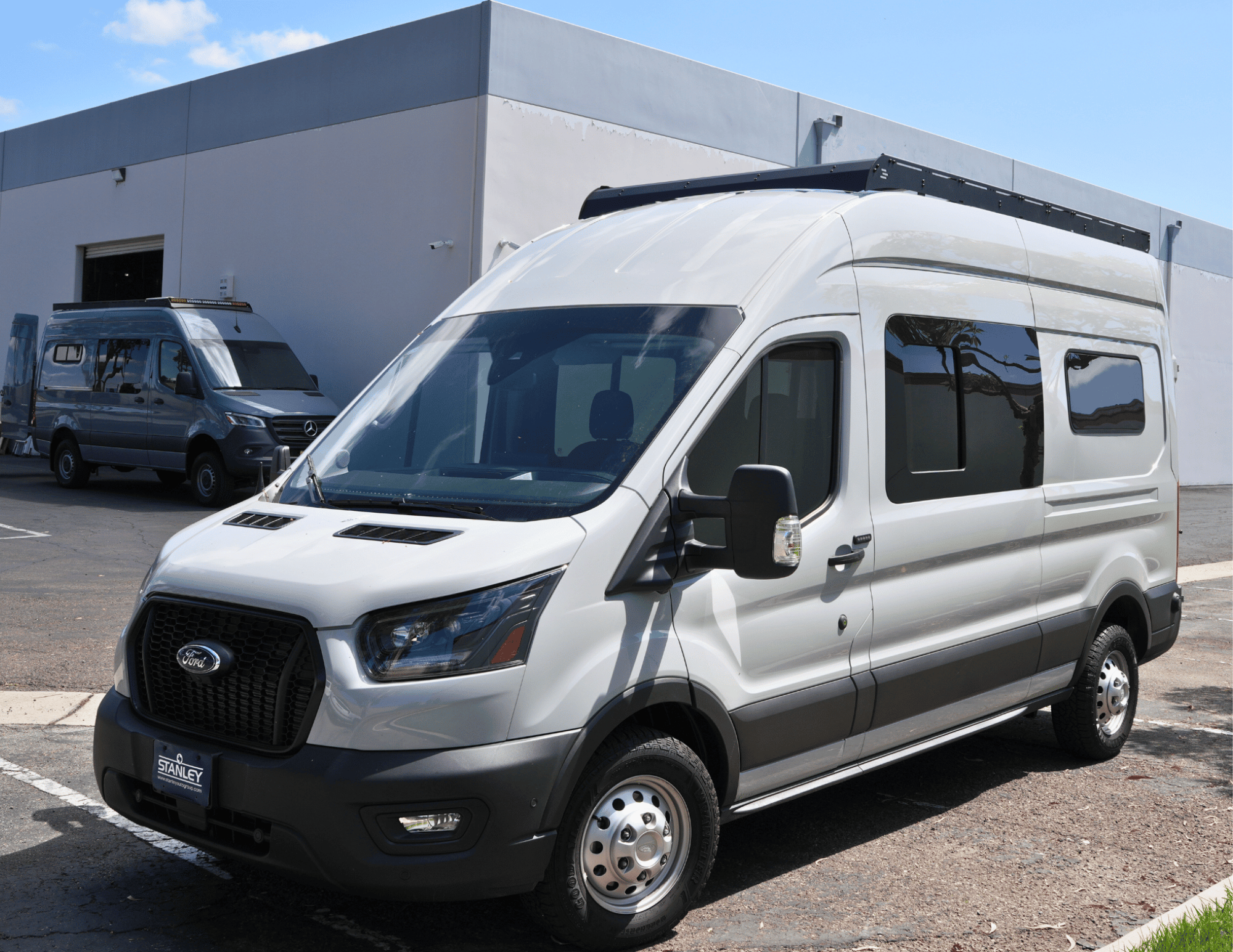

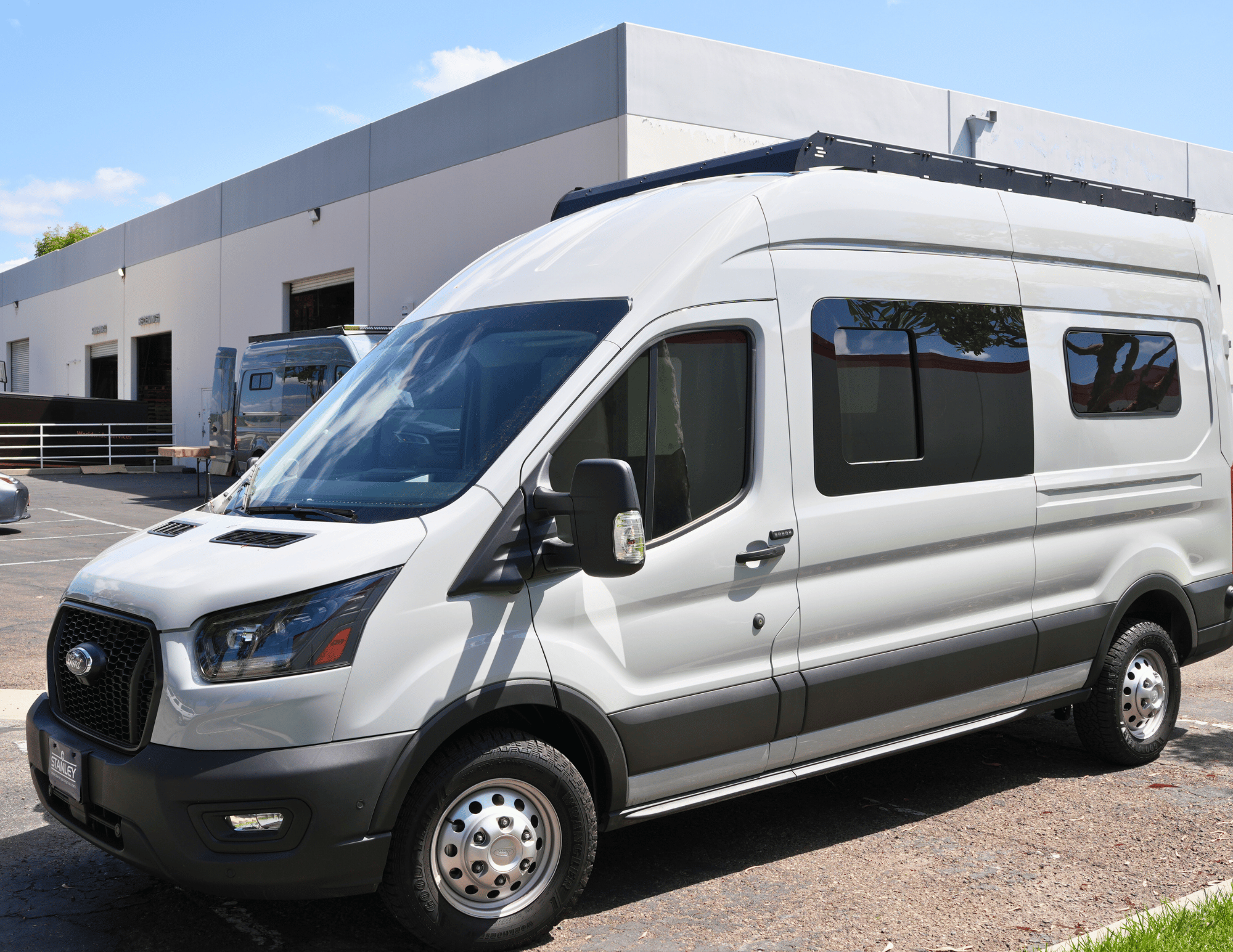

Designed for Ford Transit High Roof 148" wheelbase models.

Gear That Complements This

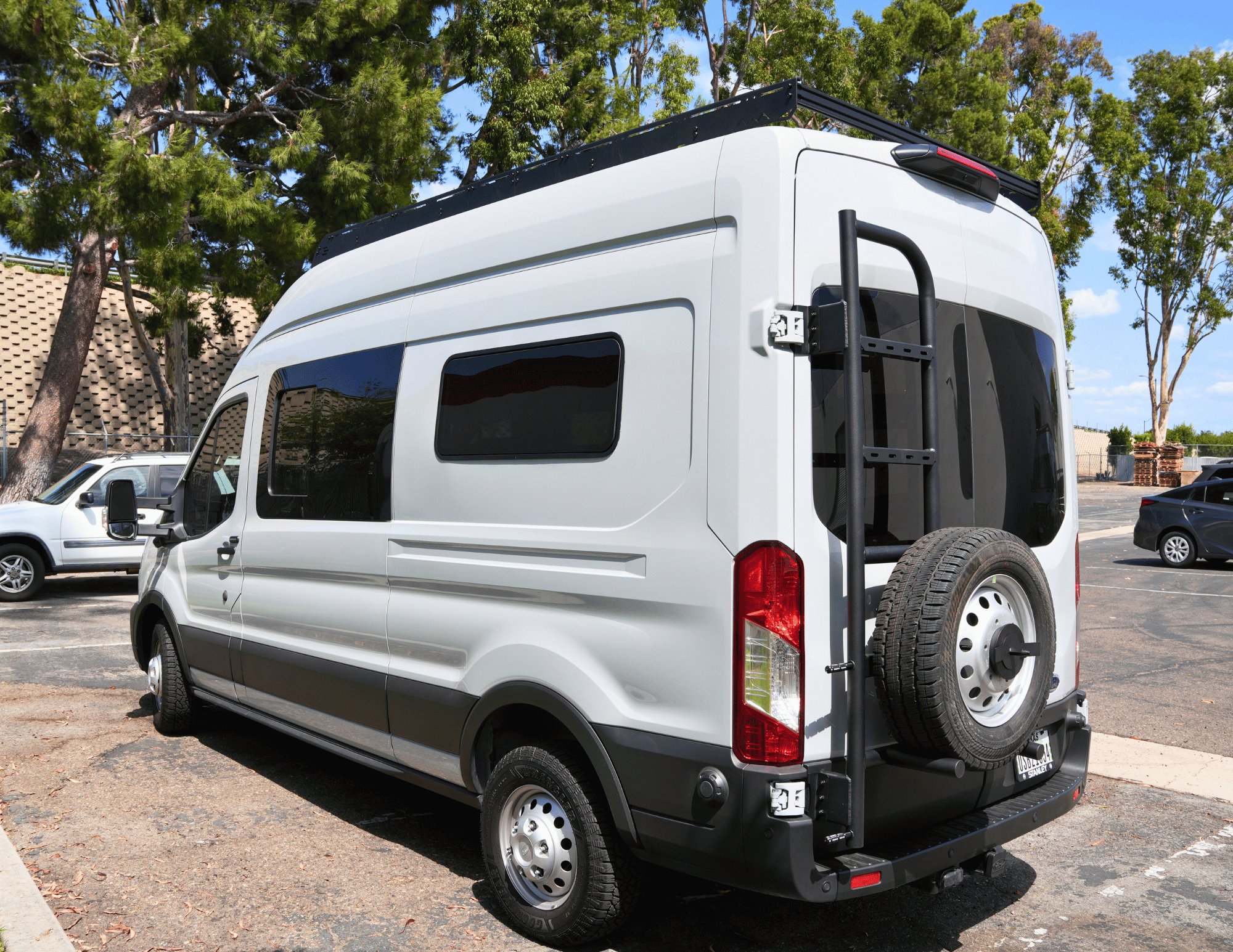

· Strata Rack with a matching Strata Ladder.

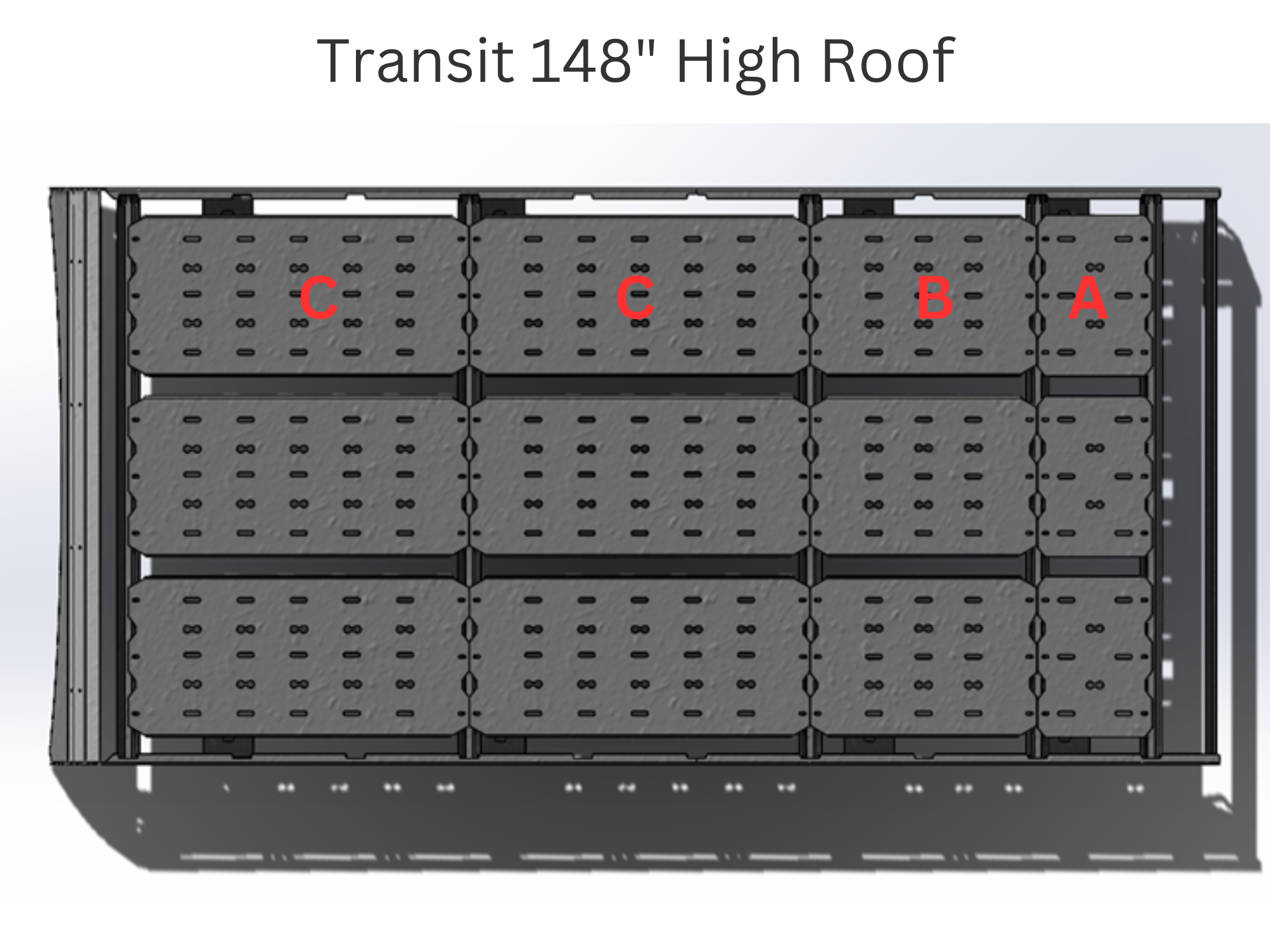

· Strata Rack Top Deck Panels

· Fiamma Awning mount for the Strata Roof Rack

TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK

FREQUENTLY
BOUGHT TOGETHER

TOTAL PRICE

$939.00

INSTALLATION GUIDES

Shipped Free. Install-Ready: Every rack comes install-ready and ships straight to your door—no hidden fees, no hassle. Just bolt it up and hit the road. Easy Gear Mounting: Designed with adjustable crossbars to fit all your rooftop essentials—AC units, MaxxFans, solar panels, rooftop tents, and more. Just slide, lock, and go.

Industrial-First Rigidity Bend: Added strength where you need it most. Our integrated rigidity bend boosts structural integrity and doubles as a safe, comfortable grab bar when climbing up.

Storage-Friendly Layout: Add rooftop storage boxes or bins effortlessly. With plenty of tie-down points and strategic mounting zones, your gear stays secure no matter where you go.

Strata Deck Compatible: Instantly upgrade your rack to a full walkable deck with our Strata Deck system—perfect for sunset views, stargazing, or working from the top of the world. Walkable Solar Ready: Works seamlessly with walkable solar panels, giving you usable rooftop space without sacrificing your energy needs.

Tens of thousands of customers worldwide
prove you don’t need to overpay for great gear.

We offer fast and free shipping
so you can get building without the wait.

Overall rating: 5.0 / 5 from 5 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Superb Roof Rack.

"Excellent quality! Very strong, easy assembly and fits like a glove. Absolutely no struggle to make it fit. Hardware labeled and very organized. The cross bars are of high quality and infinitely adjustable. The wind fairing does not increase road/wind noise. Shipping was very quick with excellent communication. I will definitely be buying from this company again."

jorge a. (5/5)

A well made rack

"Sturdy, easy install, stainless black hardware, I will be adding flush mount solar panels and an awning without needing to drill any holes in the van. Love the rack"

Troy (5/5)

Fits perfectly

"Fits perfectly easy installation for just me."

Ryan (5/5)

east installation

"east install on the strata and solid rack looks amazing."

Tim 🇺. (5/5)

Great Rack!!!

"Transit Roof rack fits perfectly. Very easy to install with just one person. All the predrilled holes lined up perfectly. Nice and study enough to walk on! Highly recommend."

Ryan 🇺. (5/5)

Q&A

Frequently Asked Questions

Will this rack fit my year Ford Transit 148" High Roof Extended?

Yes — the Transit Van 148" High Roof EXT Strata Roof Rack fits all Ford Transit high roof 148" extended wheelbase vans. Confirmed compatible across all years. For other configurations (148" non-extended, 130" WB, mid roof), we make separate SKUs you can find them here: https://whitetopadventures.com/collections/transit — confirm your exact wheelbase and roof height before ordering. Wrong-size orders do happen: if you ordered the standard 148" instead of the 148" EXT, contact us at info@whitetopadventures.com immediately and we might be able to exchange it before it ships.

Will the Fiamma F45S awning work with the Transit Strata rack? Are the brackets the same as Sprinter?

Yes — the Transit Strata rack is compatible with the Fiamma F45S wall-mount awning. The same F45S awning brackets work for both Sprinter and Transit racks. NOT compatible with the F80S roof-mount awning. For bracket hole position: use the lower holes per the install video. If you already have the rack installed and the awning hasn't arrived — the Fiamma awning ships directly from Fiamma in Florida via freight carrier (not FedEx/UPS). They will call the phone number on your order to schedule delivery. Awning brackets: whitetopadventures.com/collections/sprinter/products/f45-awning-brackets

How does this ship? Does it ship freight? How long does it take?

The Transit Strata rack ships via UPS/FedEx Ground from our Tustin, CA warehouse — not freight. Arrives in 3–7 business days once shipped. The rack ships in multiple boxes; if a box is missing, contact us with your order number. For signature on delivery: this cannot be added after the order has shipped — contact us before it ships if needed. We ship internationally; email info@whitetopadventures.com with your address for a quote.

Can I mount solar panels on the Transit Strata rack? What size panels fit?

Yes — mount solar panels directly to the crossbars using our Solar Panel Mounting Brackets (hardware included): whitetopadventures.com/products/roof-rack-solar-panel-mounting-brackets. Inside rail width is 53.2". For 200W panels: confirm the short-axis dimension is under 53.2" — if wider, panels must be oriented lengthwise. For CAD drawings or exact crossbar dimensions for solar layout planning, email info@whitetopadventures.com.

Does the WTA Transit side ladder work with this rack? What about a mid-roof Transit?

Yes — the WTA Transit Side Ladder is designed to work alongside the Transit Strata rack. It mounts to the factory roof rails independently — no conflict with the rack. For mid-roof Transit: we make a separate Transit 148" Mid Roof Strata Rack — confirm your roof height before ordering. The mid-roof side ladder is a different SKU from the high-roof ladder. For a standard/low roof Transit: contact us before ordering as ladder options are limited.

What are the crossbar dimensions? Can I buy additional crossbars separately?

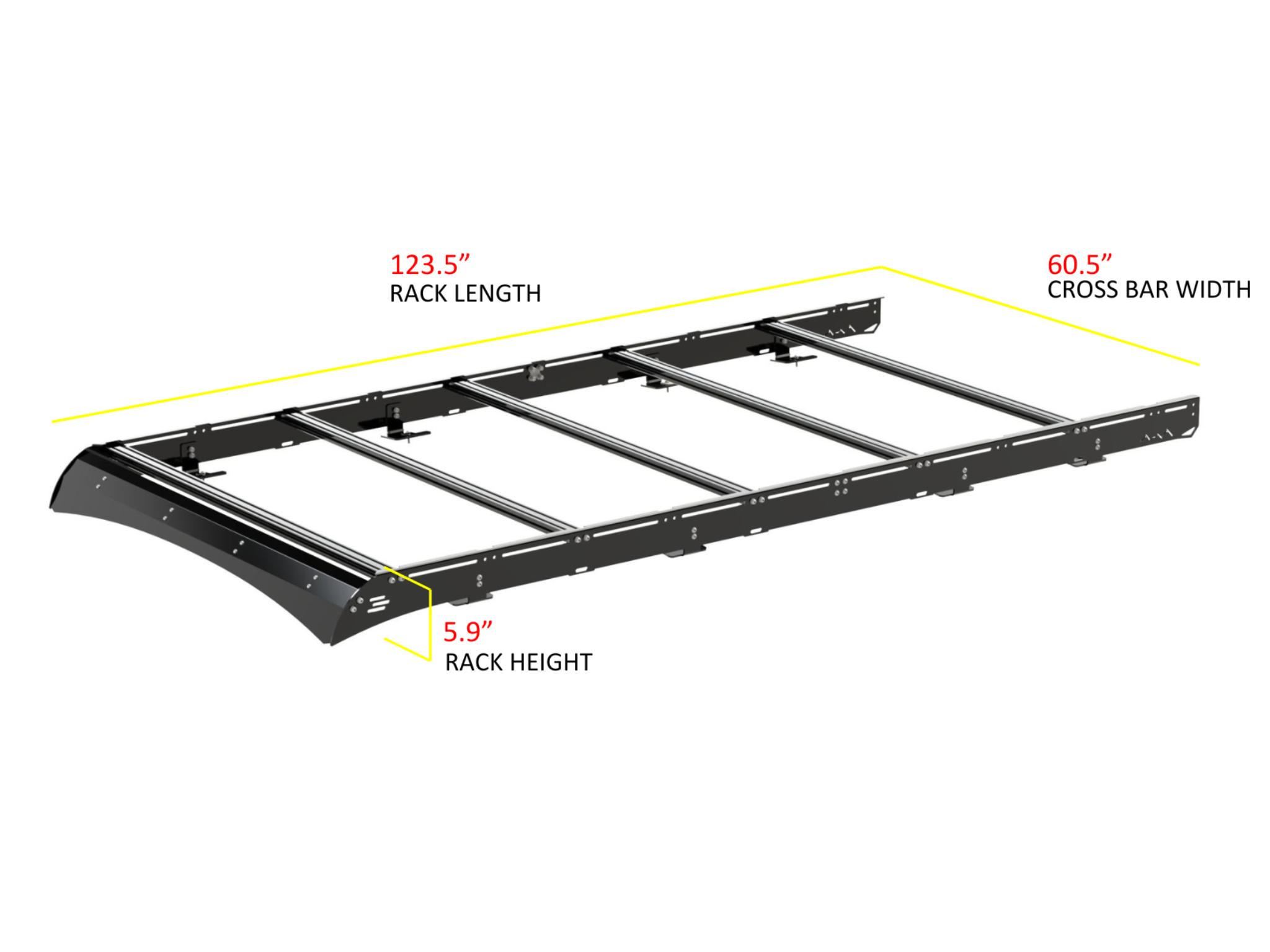

Transit crossbar length: 60.5 inches. Additional crossbars are sold as a 2-pack here: whitetopadventures.com/collections/transit/products/2-pack-crossbars-for-transit-strata-high-and-mid-roof-rack. Note: Transit and Sprinter crossbars are different sizes and NOT interchangeable — always order the Transit-specific crossbar pack.

What is the distance from the front mounting hole to the first crossbar? I need it for a Maxxair fan or solar layout.

517mm (20.3") from center of forward mounting hole to first crossbar. With the crossbar removed, to the back of the front fairing: 576mm (22.68"). For a full CAD drawing or side-view dimension spec for solar layout planning, email info@whitetopadventures.com.
