SPRINTER VAN PLATFORM 4-PANEL ALL ALUMINUM BED SYSTEM

Name: SPRINTER VAN PLATFORM 4-PANEL ALL ALUMINUM BED SYSTEM
Brand: White Top Adventures
SKU: SP-PFBv2-1, SP-PFBv2-2
Price: 1675.0 USD
Availability: InStock
Rating: 5.0 (8 reviews)

IN STOCK!

Regular price: $1,675.00
Sale price: $1,675.00
Regular price

1 16

Play video

SPRINTER VAN PLATFORM 4-PANEL ALL ALUMINUM BED SYSTEM

IN STOCK!

Regular price: $1,675.00
Sale price: $1,675.00
Regular price

Fit type Mount to L track Mount to Frame

FREE SHIPPING ON ALL ORDERS—READY TO SHIP!

The lightest, most versatile bed system we’ve ever built.

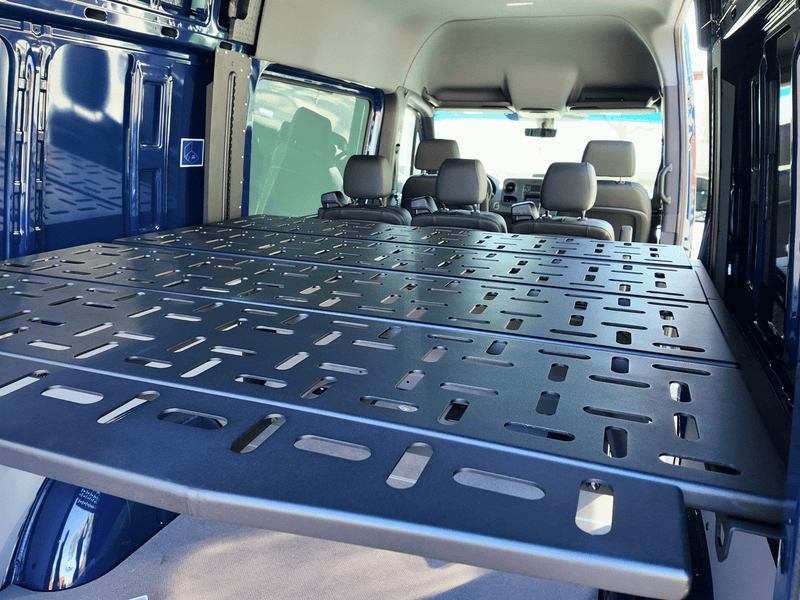

Meet the next evolution of our best-selling Platform Bed System — redesigned from the ground up for maximum flexibility, strength, and ease of use inside your Sprinter.

The new 4-panel, all-aluminum design makes this system lighter, easier to handle, and more adaptable than ever. Whether you’re hauling bikes, dirt bikes, gear, or just want a bed that’s always ready, this system is built to move with your lifestyle.

Why This Bed System Is Different

Unlike bulky steel frames or permanent wooden builds, this platform was custom-engineered specifically for Sprinter vans to give you a rock-solid sleeping surface without sacrificing interior space or payload.

All-aluminum construction — ultra-lightweight, extremely rigid, and fully corrosion-resistant
Up to 60% lighter than traditional steel bed systems

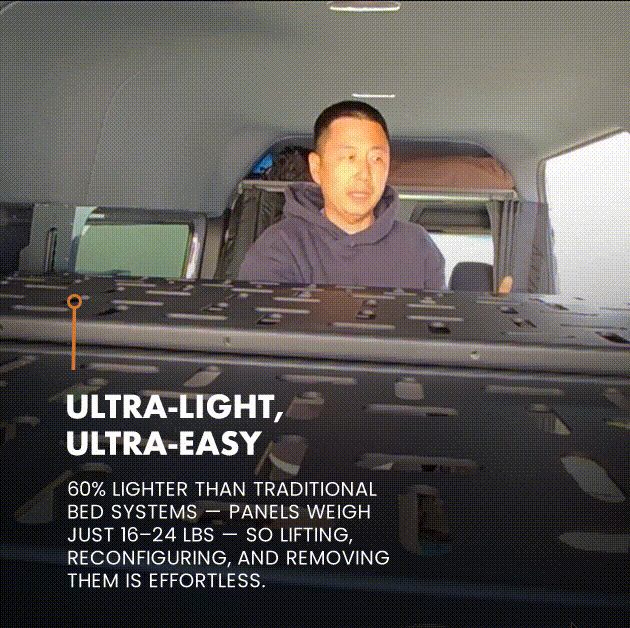

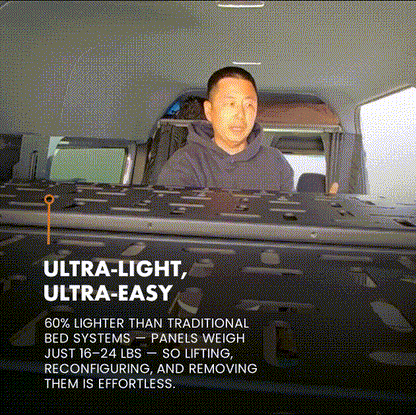

Each panel weighs just 16–24 lbs — easy to lift, remove, and reconfigure.
Zero flex, zero rattles — designed for real off-road and highway use

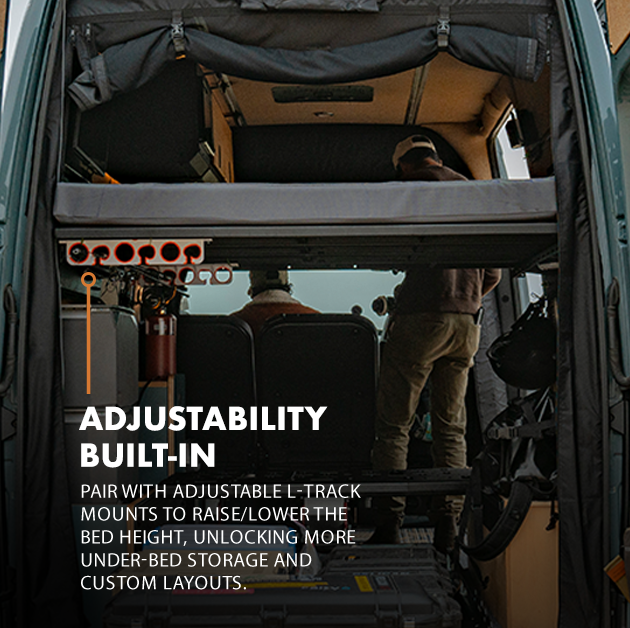

Vertically Adjustable — pair it with our L Track Adjustable Bed Brackets to quickly move your bed up and down to prepare for your next adventure.
Product Weight: 152.6 lbs

Details

· Product Weight: 152.6 lbs

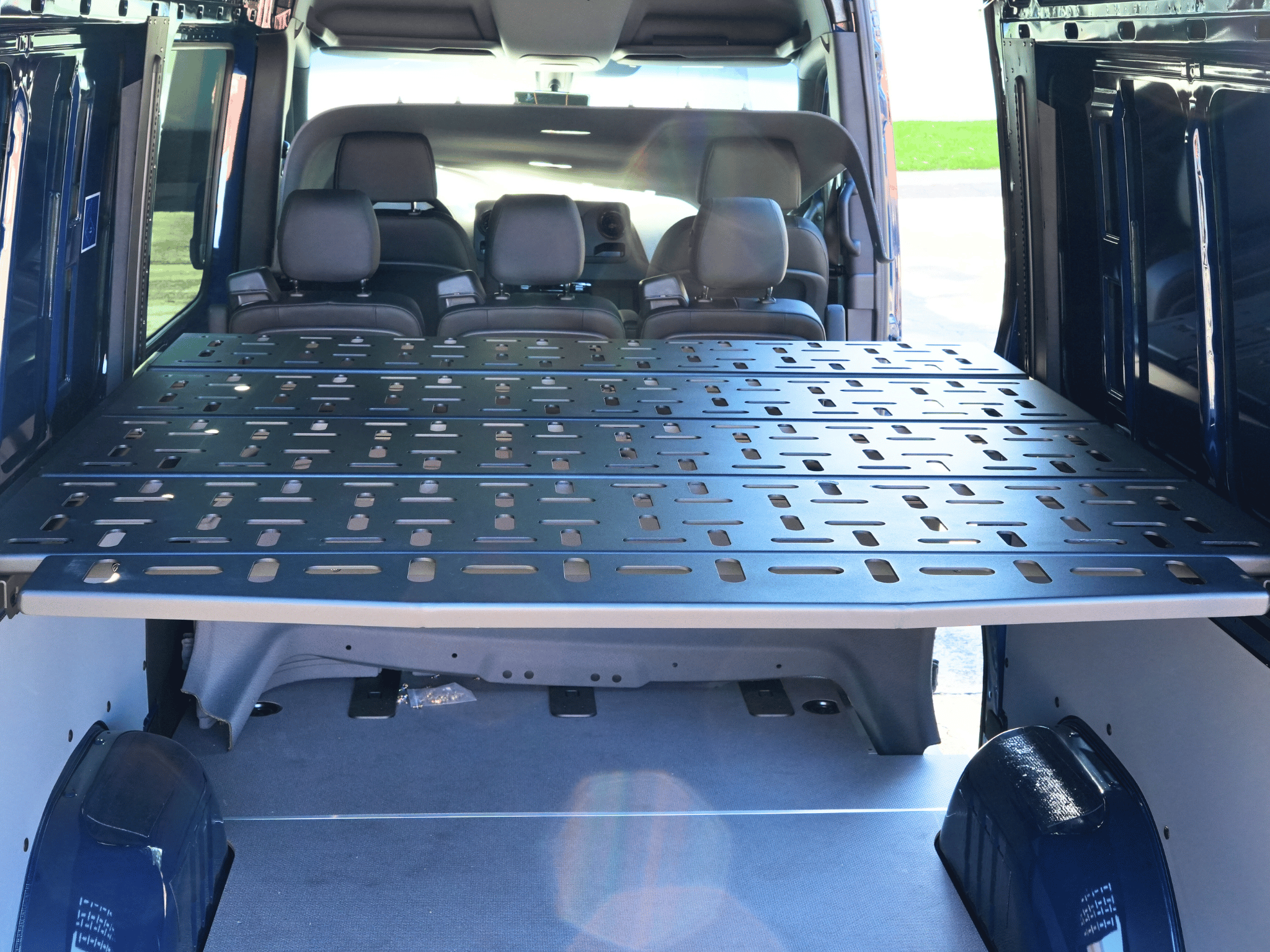

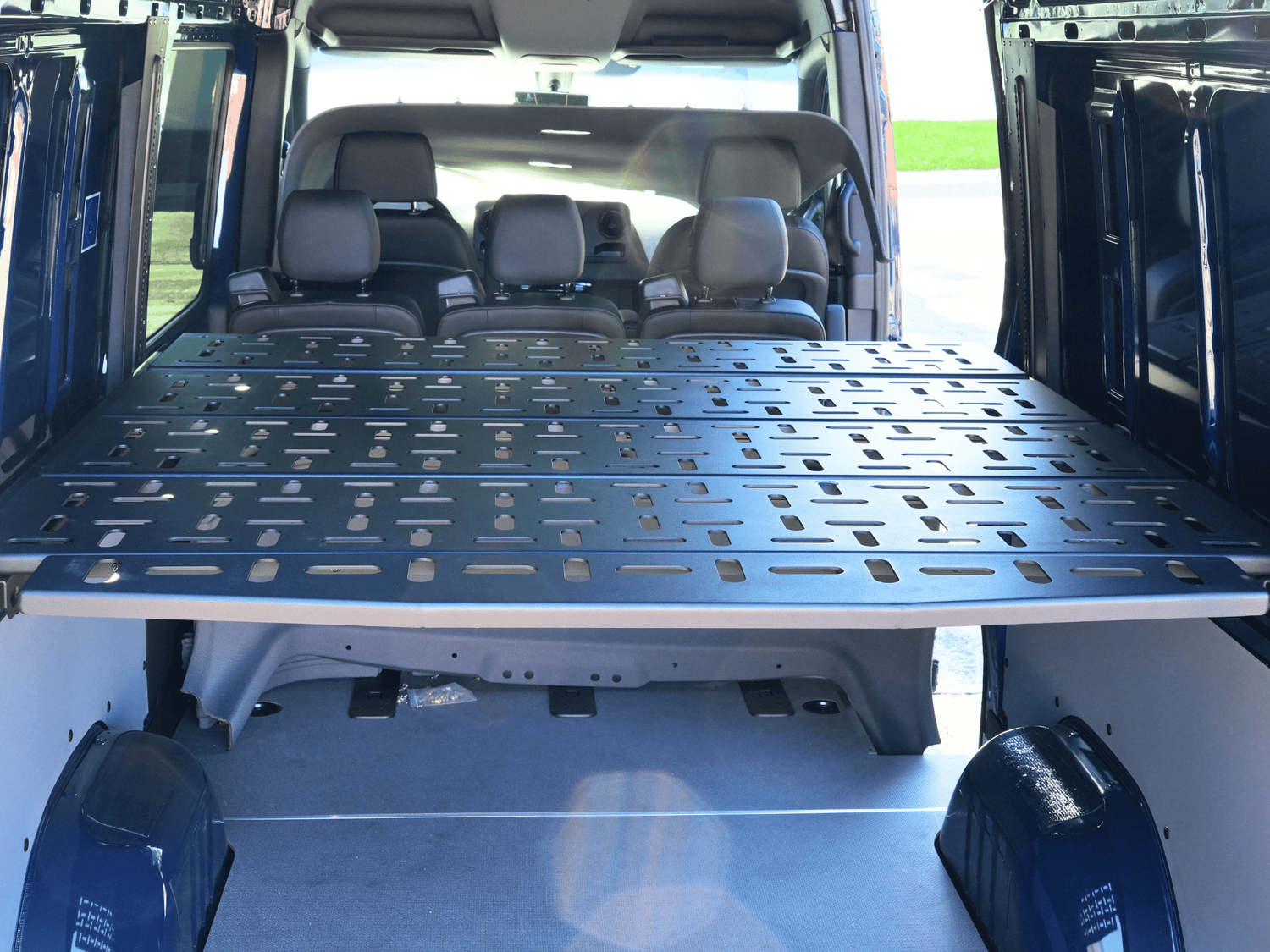

· Bed Panel Dimensions: 74.5" L x 64" W

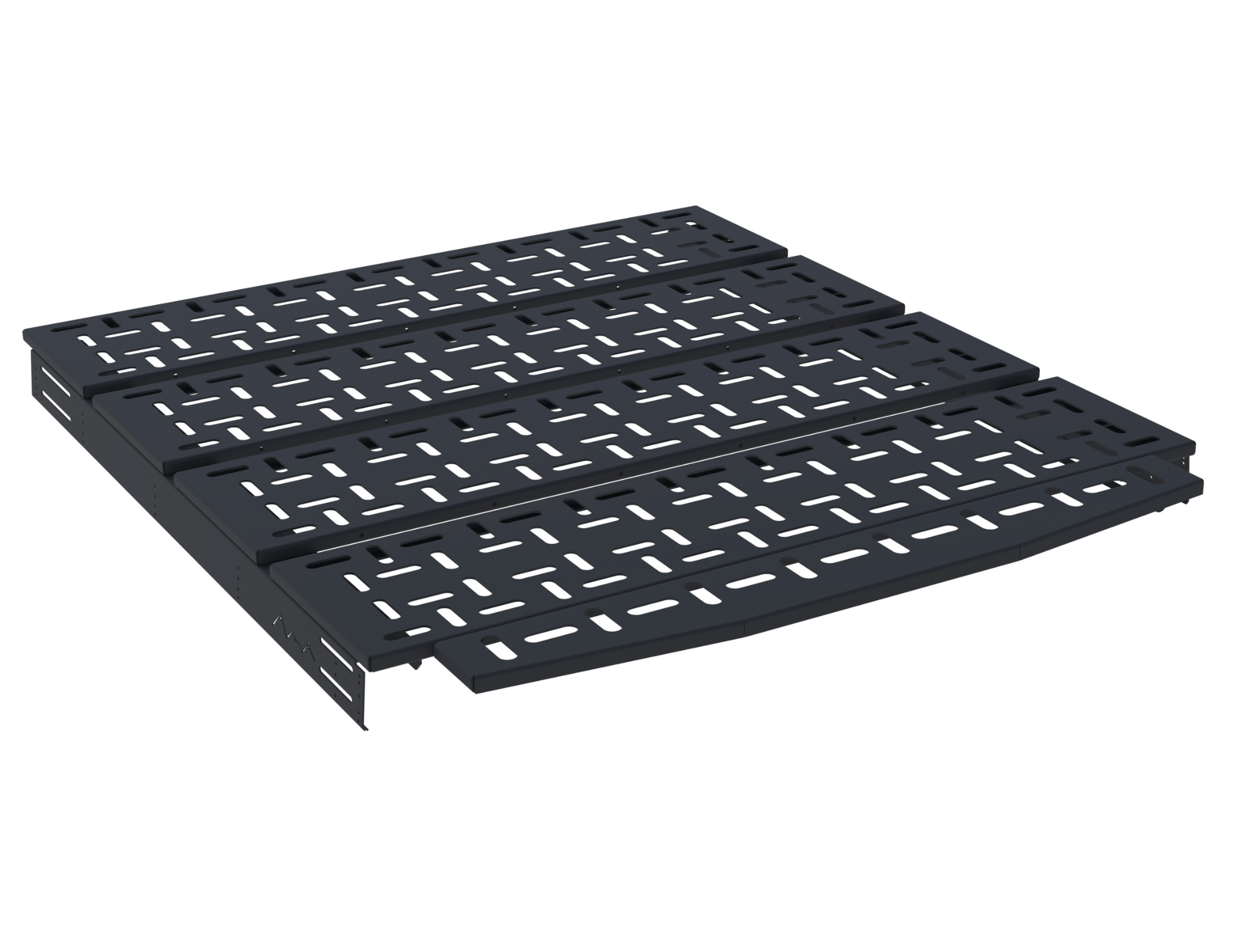

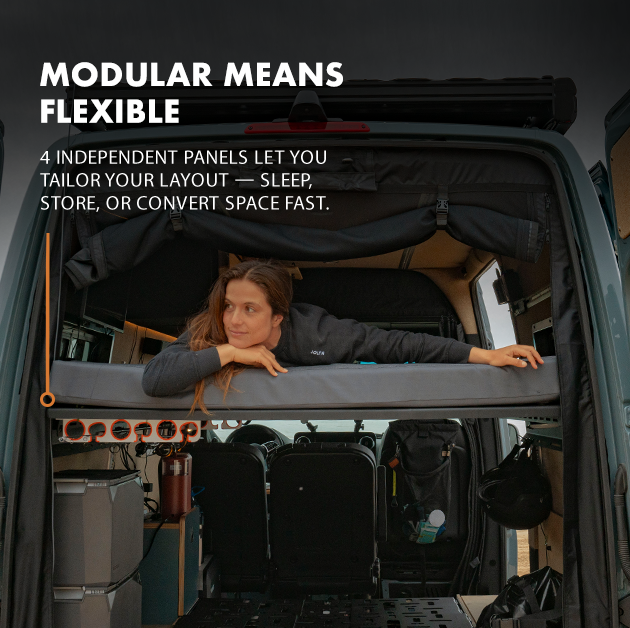

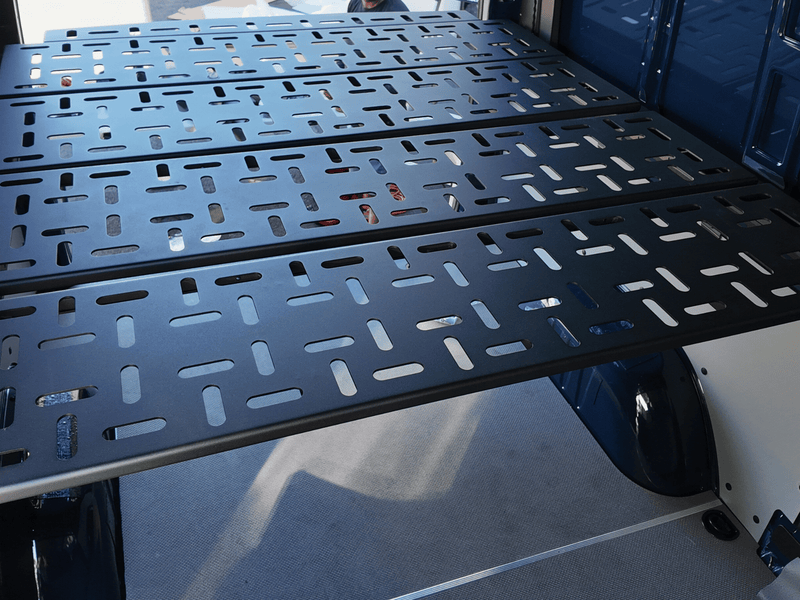

· 4 removable aluminum panels included

· Mounting height range: 37" to 48" from the van floor

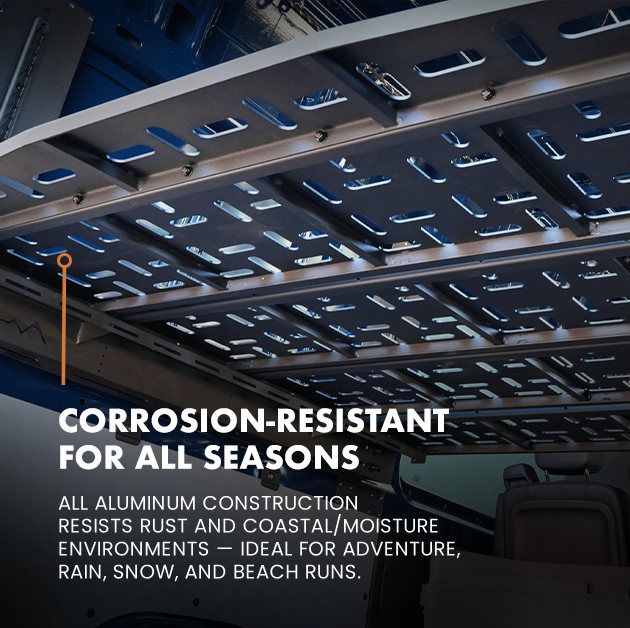

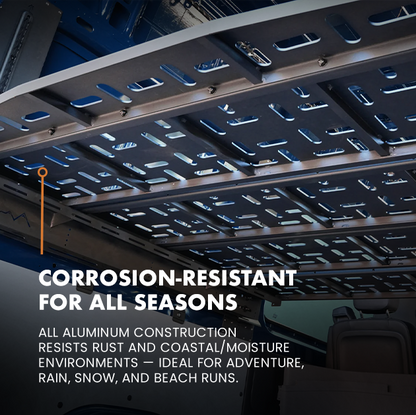

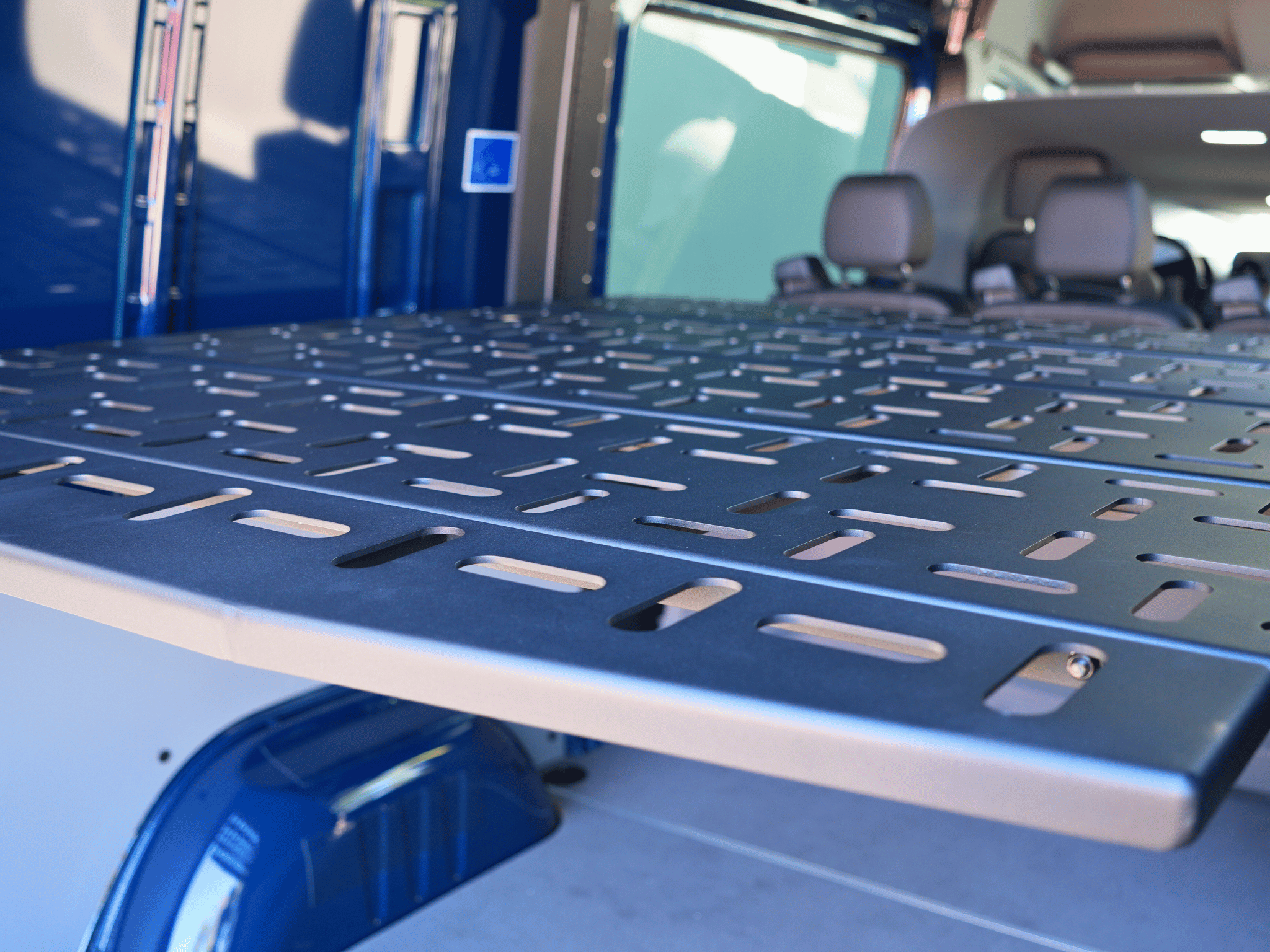

· Corrosion-resistant aluminum honeycomb construction

· 60% lighter than standard bed systems

· No flex, high rigidity

· Mounts to factory frame or Adventure Wagon rails

· Optional adjustable L-track mounting system (sold separately)

Compatibility

Mercedes-Benz Sprinter Vans (2007+)

Compatible with Adventure Wagon side rails.

Mountable directly to your van’s frame or with optional L-track mounts.
(L-track mounts sold separately).

FREQUENTLY
BOUGHT TOGETHER

SPRINTER VAN L TRACK ADJUSTABLE BED BRACKETS
Vendor:
White Top Adventures
SPRINTER VAN L TRACK ADJUSTABLE BED BRACKETS

Regular price

$345.00

Sale price

$345.00
Regular price
+

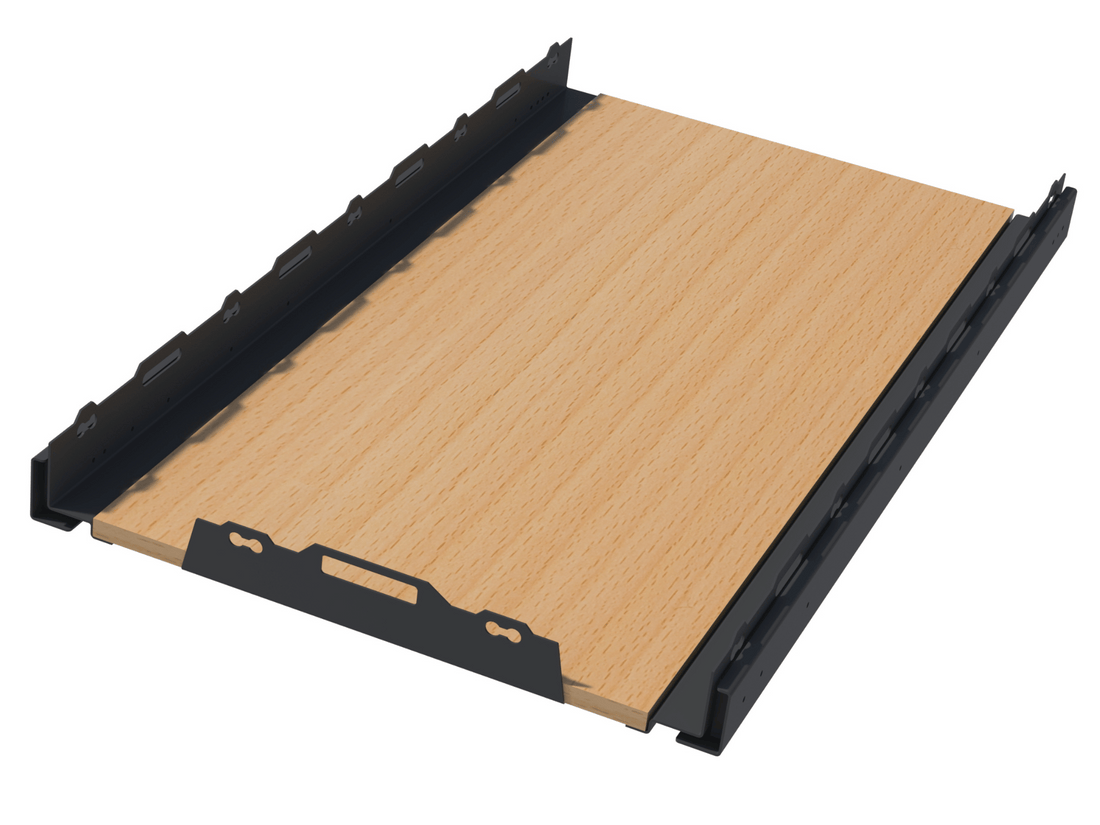

DIY PULL OUT TRAY 60"
Vendor:
White Top Adventures
DIY PULL OUT TRAY 60"

Regular price

$545.00

Sale price

$545.00
Regular price
+
SPRINTER VAN AIR FLOW INFLATABLE BED
Vendor:
White Top Adventures
SPRINTER VAN AIR FLOW INFLATABLE BED

Regular price

$299.00

Sale price

$299.00
Regular price

TOTAL PRICE

$1,189.00

INSTALLATION GUIDES

SEE HOW EASE IT IS -
DOWNLOAD THE GUIDE

Open Modal

Premium Quality, Priced Right

You shouldn’t have to choose between great gear and your budget. We make both work.

DIY Friendly

We’ve designed our products with DIYers in mind, so installs are simple, instructions are clear, and frustration stays out of the build. If you’ve got basic tools, you’ve got this.

Made For Outdoor Adventures

Built to handle the dirt, the rain, the snow, and the road ahead. Wherever you go, our gear is made to keep up.

Tens of thousands of customers worldwide
prove you don’t need to overpay for great gear.

We offer fast and free shipping
so you can get building without the wait.

Overall rating: 5.0 / 5 from 8 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Buy one - It is a fantastic product

"Once you have the L-Track system installed on the walls, adding the bunk is a piece of cake - it takes less than an hour for two people to install the rails and panels. Super happy with our purchase and I love how easy it is to remove the platform panels when I need my van to haul cargo. This is the perfect bunk solution for the sprinter owner who uses their van for more than recreation. Bonus: Whitetop Adventures has amazing customer service - real people answer calls!"

— karrie h. (5/5)

4 Panel Bed with L-Track Brackets

"We transformed our 2012 Sprinter Passenger Van into a “weekender” van by purchasing the four-panel bed. This significant upgrade was driven by its affordability and compatibility, especially considering we have aftermarket in our rear windows. Steve at WAV was incredibly helpful in ensuring the bed would fit perfectly. Installation was strait forward, taking about 3 hours. Having access to a rivet gun was huge. We carefully mounted the L-Track brackets, ensuring the bed rails and panels were placed and aligned correctly. Overall, this bed platform is great, and it complements the Hest Dually Custom 75 perfectly for added comfort."

— Daniel L. (5/5)

Excellent Product

"The kits look really great! I am having the L-Track installed and onto our first Grand Canyon safari."

— Lauben K. (5/5)

Sturdy bed

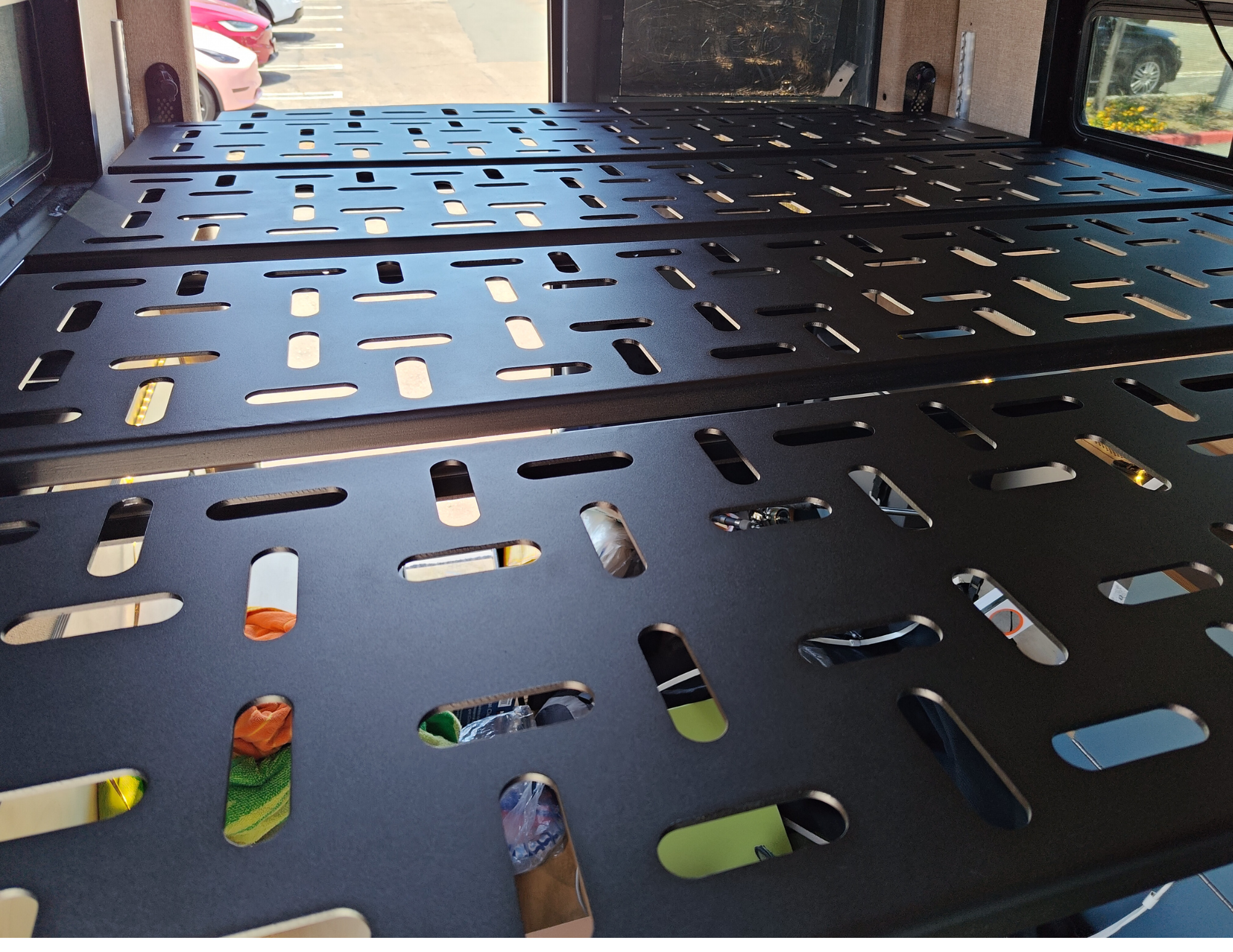

"These fit right into the L track brackets. The individual pieces fit right into place , making a sturdy bed that doesn't move when traveling. They can be removed when not needed and take about as much room as a short bookshelf when stored."

— Scott C. (5/5)

Works in the passenger van

"I have windows on the back and this bed system actually works in the passenger van which is what I have it works great and the products very strong they're not many system out there on the market don't work with a passenger van"

— Ken (5/5)

Great bed system

"Very easy to setup and super sturdy."

— Kim (5/5)

maybe 100X better

"I am going to show you guys a before and after of my bed and you guys can be the judge."

— Wally (5/5)

Printed instructions or a site link at least

"Bed is great and all. Kind of wish that it came with printed instructions. Had to find them online, and that took a little longer than expected; when we could have just been trucking forward with the install."

— Ryan J. (5/5)

Q&A

Frequently Asked Questions

What are the exact dimensions of the 4-panel bed? Will it fit my Sprinter?

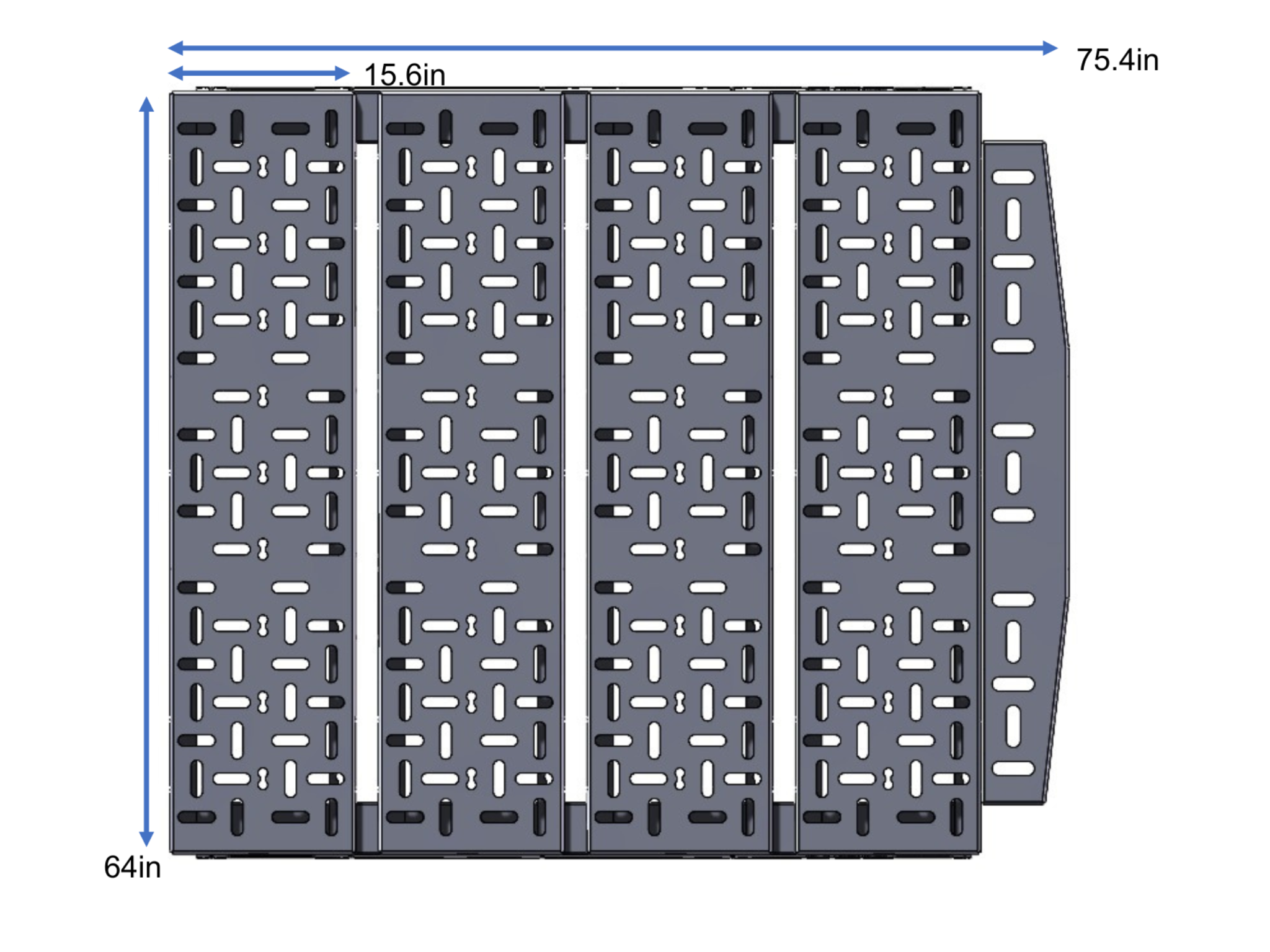

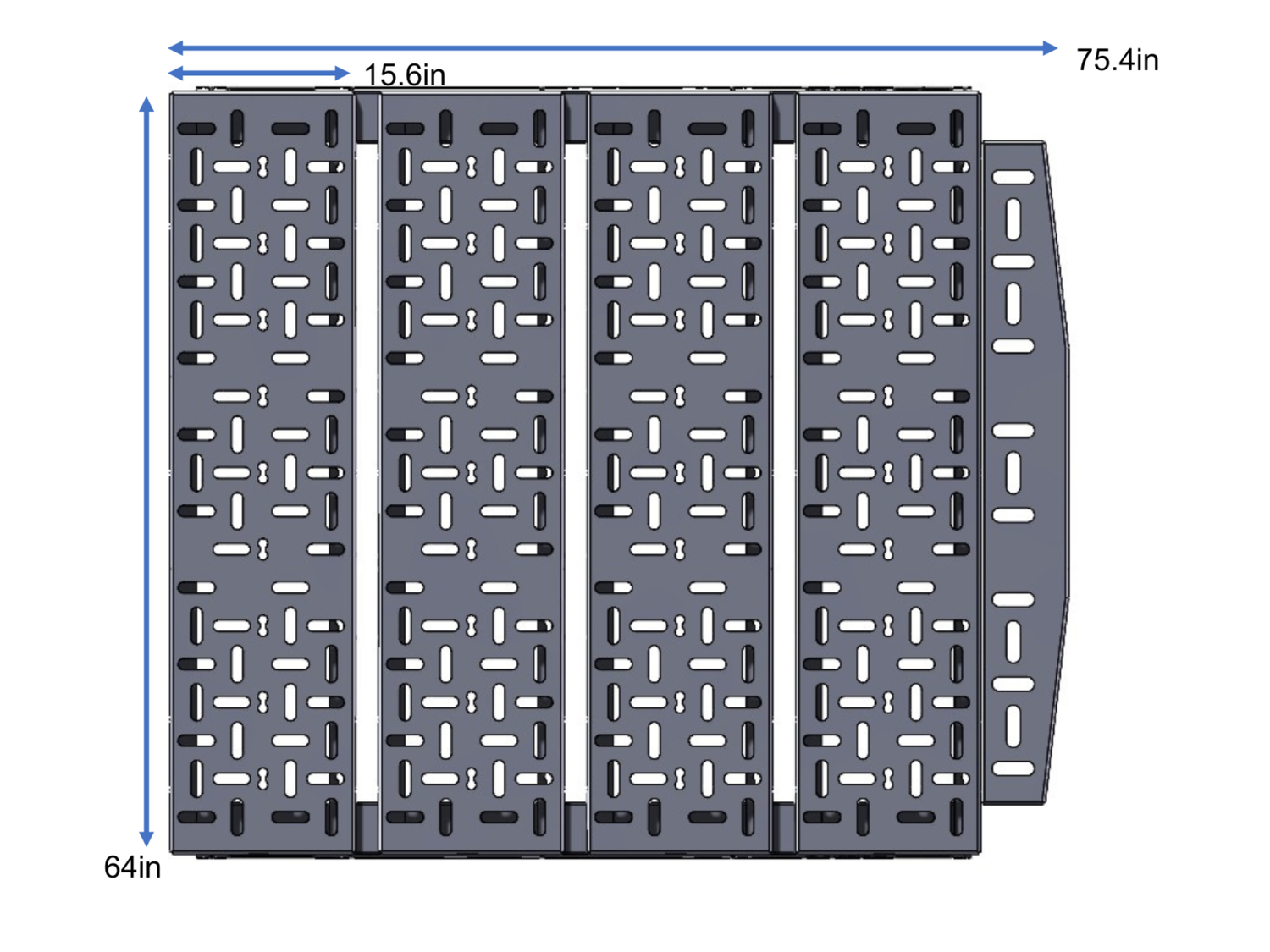

The 4-panel bed system overall dimensions are 64" x 75.4". Each individual panel is 64" x 15.6". It is designed for the high roof Sprinter and fits both 144" and 170" wheelbases. For custom mattress orders: Steve recommends ordering from RoamRest using the bed dimensions. Corner gaps between panels and exact rivet hole specs are below on this page and in the install PDF.

How do the L-Track brackets work? Do I need them? Will they work in my passenger van?

The L-Track Adjustable Bed Brackets mount to the existing L-Track already in your van's walls, letting you set the bed at any height. They are sold separately from the bed panels. If your van has no L-Track, you can mount the bed frame directly to the van body — instructions for both methods are in the PDF on the product page. The brackets work in all Sprinter configurations including passenger vans with windows. For Transit vans we have a separate bed system, click here to access.

How long does shipping take? Can I pick up locally?

In-stock orders ship same day or next business day via UPS/FedEx and arrive in 3–7 business days. For local pickup: 14831 Franklin Ave, Tustin, CA 92780. Hours: Mon–Thu 9AM–4PM, Fri 9AM–3PM. Place your order online first and note 'will call,' then call or text 949-298-0455 before heading over.

What tools do I need? What size rivets? Is there an install video?

Required tools: 5mm and 6mm hex wrenches, 10mm and 13mm open-end or socket wrenches, and a rivet gun for L-Track installation. Current rivet spec: 1/4" rivnuts (recently updated from 1/8" — the install video may still show the old size, but 1/4" is correct and stronger). Full install PDF and video are right below on this product page. The bed does not require a rack to install.

What's the difference between the 3-panel and 4-panel? Which one should I order?

The 4-panel is the current product — the 3-panel has been phased out. Both use the same wall rails. The 4-panel is lighter and allows you to remove individual panels more easily.

How much weight can the 4-panel bed system hold?

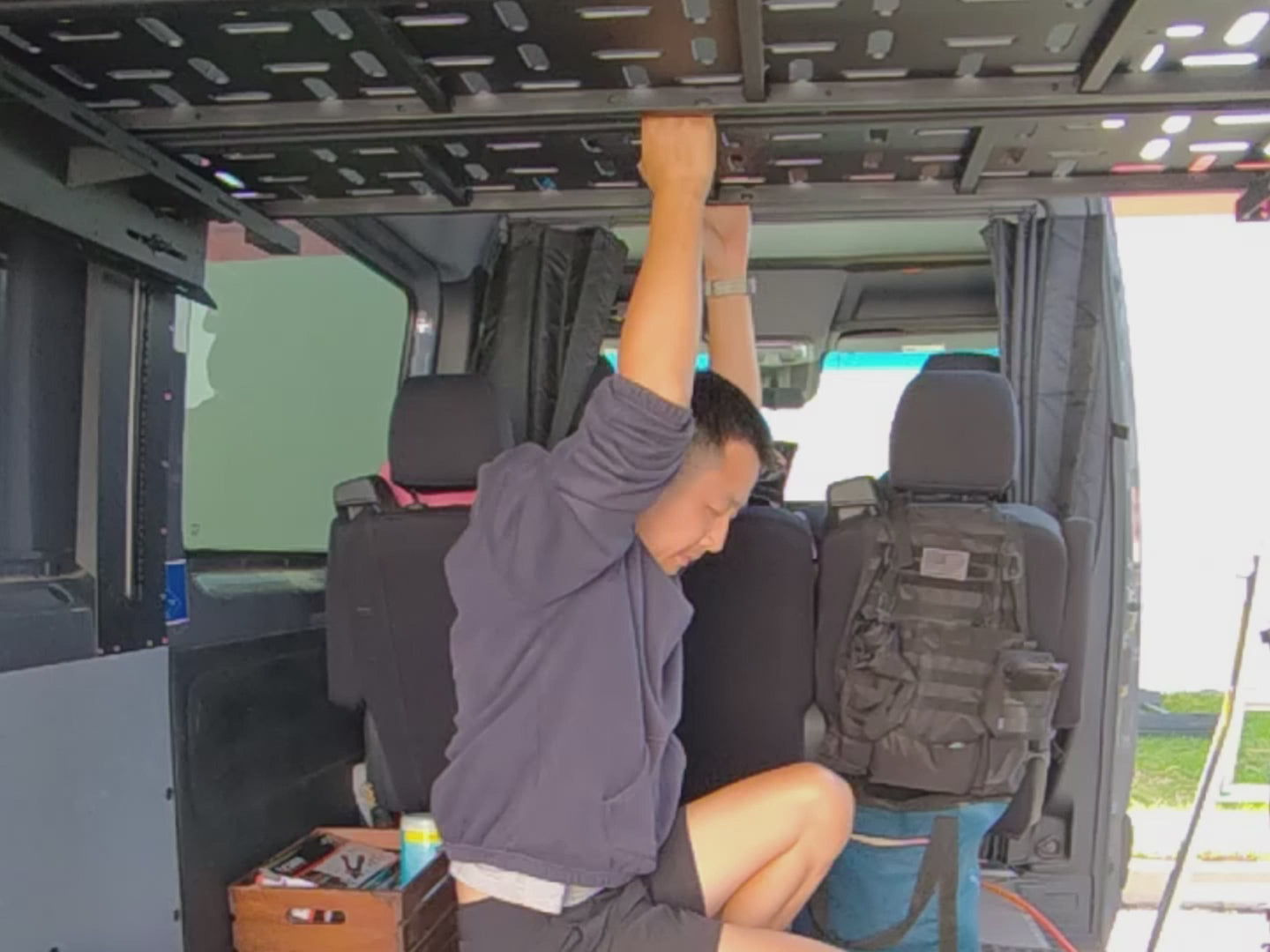

The 4-panel bed system supports 500 lbs as a distributed load. Customers have used it for heavy product storage beyond that without issues. Avoid concentrated point loads on a single panel. Here's a load strength video: whitetopadventures.com/cdn/shop/videos/c/vp/148e65d5001f4

What mattress do you recommend for the 4-panel bed system?

We recommend RoamRest for a mattress that fits the bed dimensions. Contact us at info@whitetopadventures.com and we'll send you the exact dimensions to use when ordering. A standard cut-to-size foam mattress at 64" x 75" works well. Note: the thin foam strips on top of the platform can pull off when sliding a mattress — position your mattress carefully when removing it.
